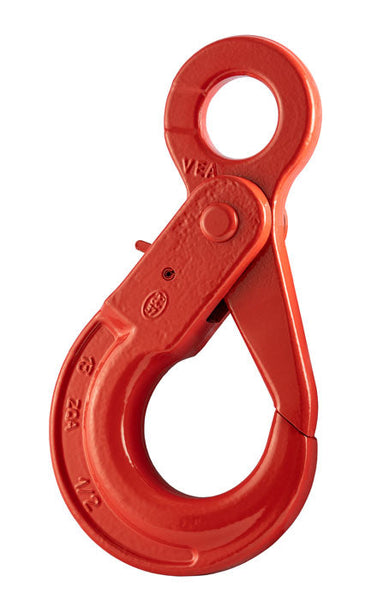

KITO - Grade 8 Eye Type Self Locking Hook to BS-EN 1677-3 (SNE Series)

KITO - Grade 8 Eye Type Self Locking Hook to BS-EN 1677-3 (SNE Series)

SKU: 286-16-1

Skip to product information
1 of 2

KITO Weissenfels

KITO - Grade 8 Eye Type Self Locking Hook to BS-EN 1677-3 (SNE Series)

KITO - Grade 8 Eye Type Self Locking Hook to BS-EN 1677-3 (SNE Series)

SKU: 286-16-1

Read More
Regular price €41,17
Regular price RRP Sale price TODAY'S PRICE €41,17

In stock

Tax included.

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Description

Grade 8 Clevis Self Locking Hook to BS-EN 1677-3 (SNE Series)
  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Conforms to BS EN 1677-3.
  • Temperature range: -40 °C to +400 °C (Reductions in W.L.L apply).
  • Certification - Declaration of Conformity

Spec

SKU
Chain Dia Part No. D E F G H O R
mm mm mm mm mm mm mm mm
286-16-1
7/8 SNE7-8 43.5 12 27 20 26 34 136
286-16-2
10 SNE10 56 15 34.5 24.5 30 45 168.5
286-16-3
13 SNE13 69 20 40 34.5 40 51.5 205
286-16-4
16 SNE16 80 27 50 35.5 50 60 251.5

SKU Chain Dia W.L.L. M.P.F. M.B.F. Weight
mm t kN kN kgs
286-16-1 7/8 2 50.3 80.4 0.89
286-16-2 10 3.15 78.5 126 1.58
286-16-3 13 5.3 133 212 3.16
286-16-4 16 8 201 322 6.05
