KITO - Grade 10 Single Leg Master Link - DG1 Series to BS-EN 1677-4

KITO Weissenfels SKU: 286-215-1

1 2

KITO WEISSENFELS Grade 10 Single Leg Master Link – DG1 Series Grade 10 alloy steel, quenched and tempered. Grey painted... Read More

€45,85

RRP TODAY'S PRICE €45,85

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

KITO WEISSENFELS Grade 10 Single Leg Master Link – DG1 Series

Grade 10 alloy steel, quenched and tempered.
Grey painted finish.
Meets the performance requirements of BS EN 1677-4 +25% of loads.
Suitable for use with grade 10 chains and wire/fibre rope slings.
Specially designed for direct clevis connection of hooks to chain.
No reduction in W.L.L. of sling when using the shortening hook.
Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
Certification - Declaration of Conformity

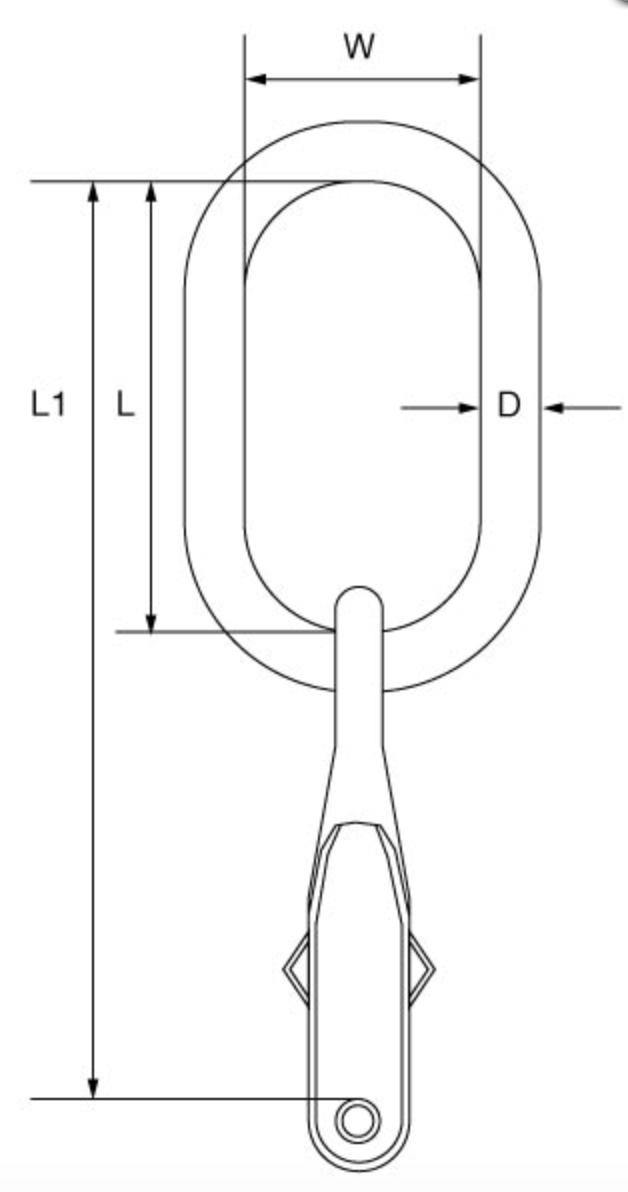

SKU	Chain Dia 1 leg	W.L.L.	M.P.F.	M.B.F.	D	L	L1	W	Weight
	mm	t	kN	kN	mm	mm	mm	mm	kgs
286-215-1	6	1.4	34.3	54.9	13	110	198	60	0.61
286-215-2	7/8	2.5	61.3	98	16	110	227	60	1.14
286-215-3	10	4	98	157	19	135	283	75	2.12
286-215-4	13	6.7	164	263	23	160	345	90	4.17
286-215-5	16	10	245	392	27	180	412	100	6.98
