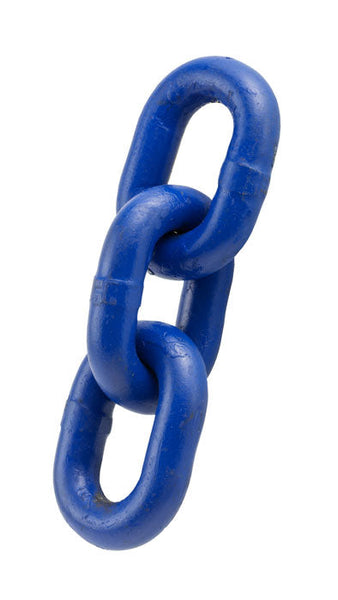

KITO WEISSENFELS Grade 10 Short Link Chain
  • Grade 10 alloy steel, heat treated.
  • Blue painted finish.
  • Grade 10 vs Grade 8 increase in load capacity up to 25%. Reduction of slings weight up to 40%. Better wear resistance enabling longer performance.
  • Meets the performance requirements of BS EN 818-2 +25% of loads.
  • Temperature range: -29°C to +205°C.
  • Marked with material grade and manufacturers ID.
  • Certification - Declaration of Conformity

Spec

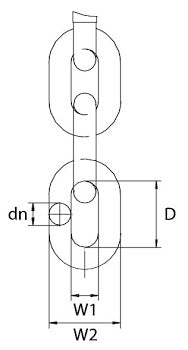

SKU dn D W1 (min) W2 (max)
mm mm mm mm
286-210-1 6 18 7.8 22.2
286-210-2 7 21 9.1 25.9
286-210-3 8 24 10.4 29.6
286-210-4 10 30 13.0 37.0
286-210-5 13 39 16.9 48.1
286-210-6 16 48 20.8 59.2
286-210-7 19 57 24.7 70.3


Technical Data

SKU dn W.L.L. M.P.F. M.B.F. Drum Length Weight
mm t kN kN m kgs/m
286-210-1 6 1.4 35.3 56.5 100 0.83
286-210-2 7 1.9 48.1 77 100 1.17
286-210-3 8 2.5 62.8 102 100 1.51
286-210-4 10 4 98.2 157 100 2.4
286-210-5 13 6.7 166 265 50 4
286-210-6 16 10 251 402 50 6
286-210-7 19 14 354 567 25 8.71
