Description
Description

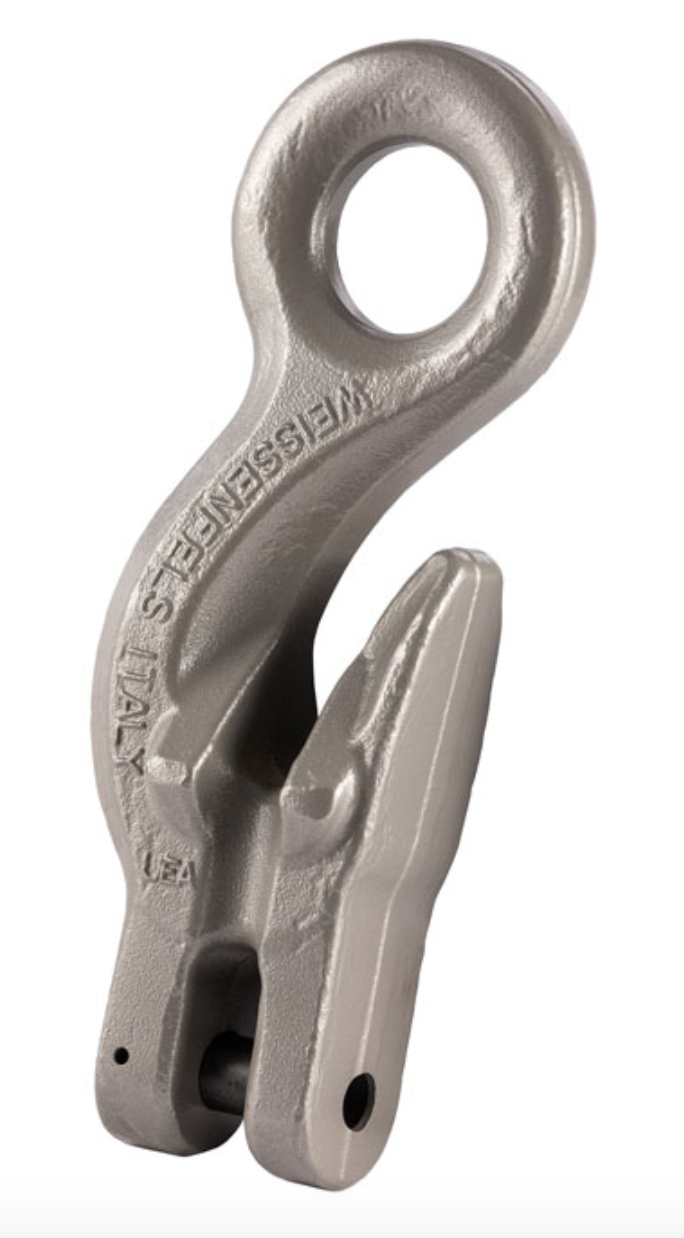

- Grade 10 alloy steel, quenched and tempered.
- Grey painted finish.
- Meets the performance requirements of BS EN 1677-4 +25% of loads.
- No W.L.L reduction when used as a lifting or shortening in a grade 10 sling in accordance with performance requirement – BS EN 1677-7.
- Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
- Certification - Declaration of Conformity
Spec
| SKU |

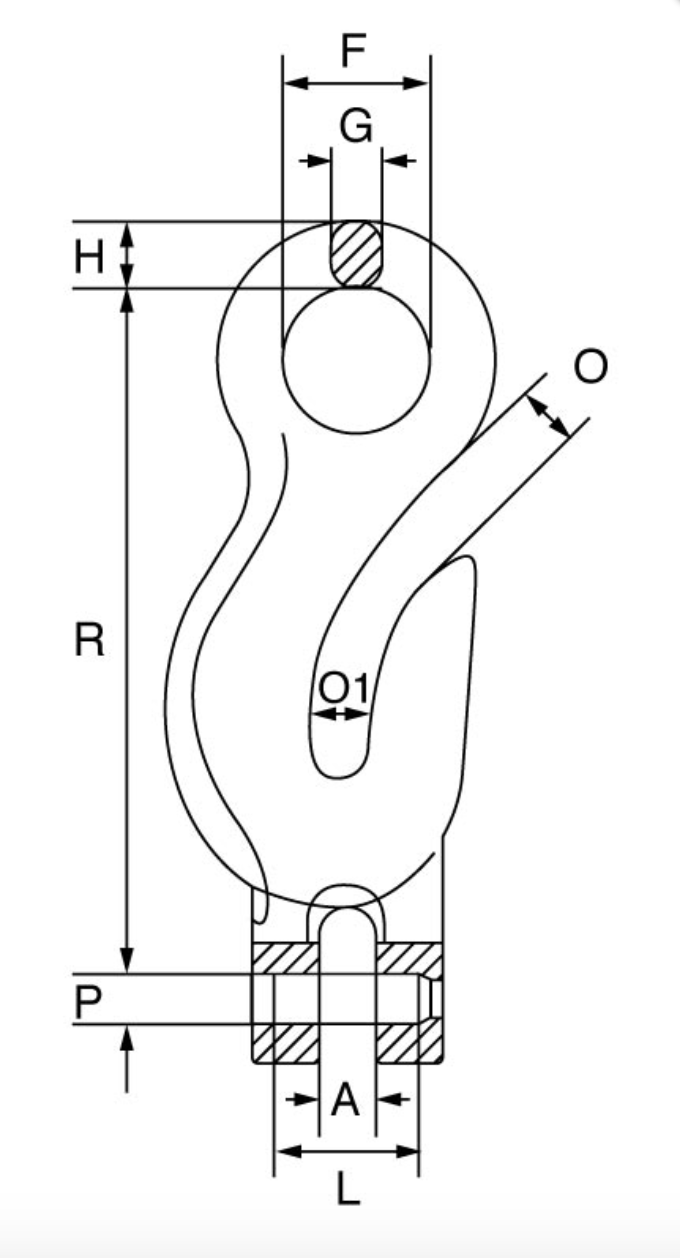

Chain Dia | A | F | G | H | O | O1 | R | P x L |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| 286-223-1 |
6 | 6.5 | 18 | 7.7 | 10.3 | 8 | 8 | 88.5 | 7.4 x 16.5 |
| 286-223-2 |
7/8 | 9.1 | 24 | 9.6 | 13.5 | 9.2 | 9 | 117 | 9.6 x 23 |
| 286-223-3 |
10 | 11.5 | 31 | 12 | 16 | 13.7 | 13.5 | 148 | 12.5 x 29.5 |
| 286-223-4 |
13 | 14.5 | 37 | 15.5 | 20 | 16.2 | 15.5 | 185 | 16 x 37 |
| 286-223-5 |
16 | 17.5 | 48 | 20.5 | 26.5 | 21.4 | 20 | 232 | 20 x 52 |
Technical Data
| SKU | Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|---|
| mm | t | kN | kN | kgs | |
| 286-223-1 | 6 | 1.4 | 35.3 | 56.5 | 0.27 |
| 286-223-2 | 7/8 | 2.5 | 62.8 | 100 | 0.61 |
| 286-223-3 | 10 | 4 | 98.2 | 157 | 1.22 |
| 286-223-4 | 13 | 6.7 | 166 | 265 | 2.55 |
| 286-223-5 | 16 | 10 | 251 | 402 | 4.9 |
