KITO - Grade 10 Clevis Grab Hook to BS-EN 1677-1

KITO Weissenfels SKU: 286-221-1

1 2

KITO WEISSENFELS Grade 10 Clevis Grab Hook Grade 10 alloy steel, quenched and tempered. Grey painted finish. Meets the performance requirements of BS EN... Read More

€17,10

RRP TODAY'S PRICE €17,10

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

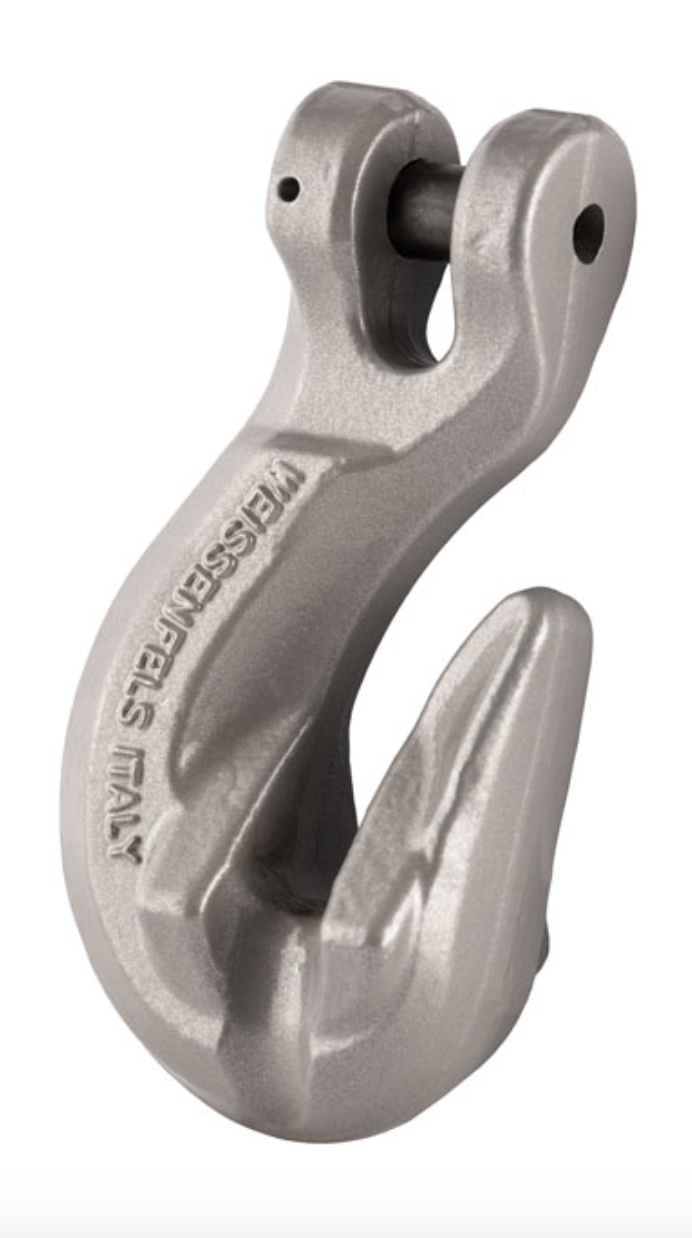

KITO WEISSENFELS Grade 10 Clevis Grab Hook

Grade 10 alloy steel, quenched and tempered.
Grey painted finish.
Meets the performance requirements of BS EN 1677-4 +25% of loads.
Clevis fitting enables direct connection to chain.
No reduction in W.L.L of the chain sling capacity if used as a shortening device.
For correct safe use of the hook as a shortening device it must be assembled to the master link via 3 links of chain.
Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
Certification - Declaration of Conformity

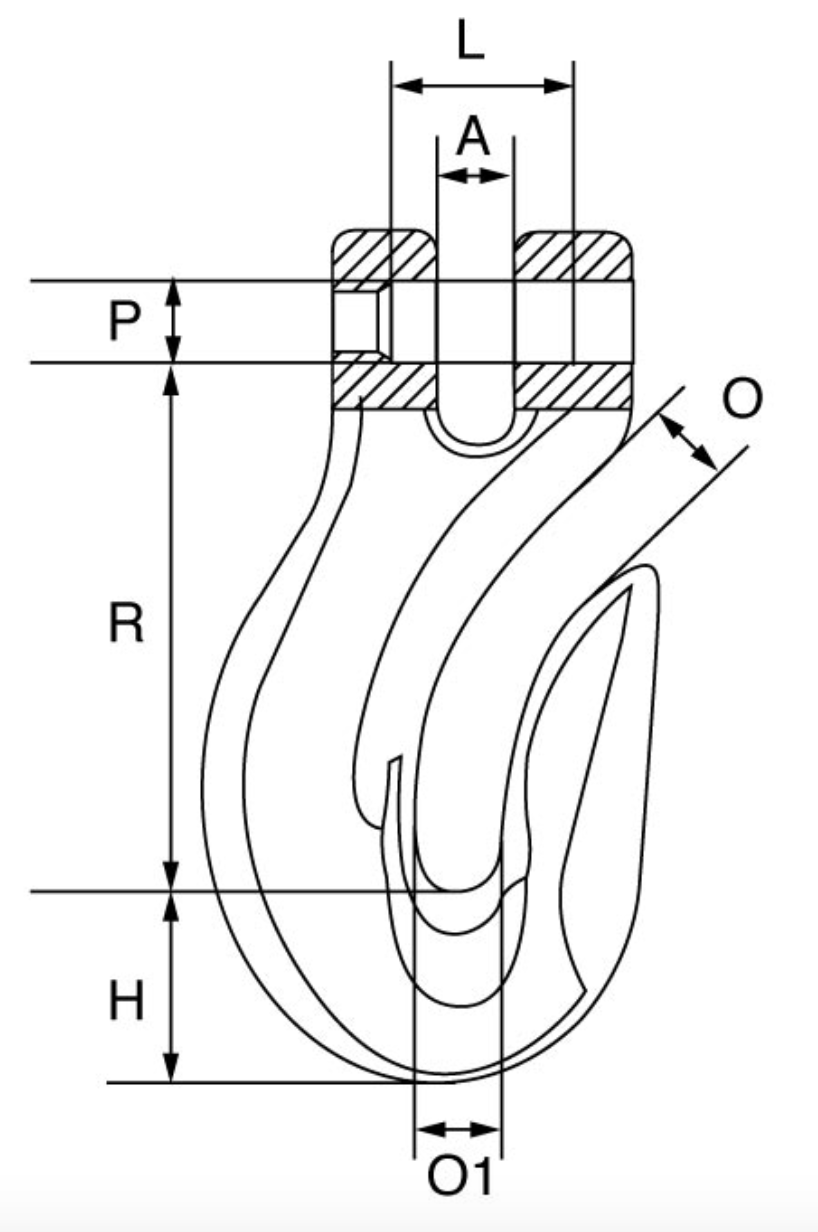

Specification

SKU	Chain Dia	A	H	O	O1	R	P x L
	mm	mm	mm	mm	mm	mm	mm
286-221-1	6	7	17.5	7	7.5	51	7.4 x 16.5
286-221-2	7/8	9	23.5	9.5	10.5	66	9.6 x 23
286-221-3	10	11.5	29	12.5	13.5	82	12.5 x 29.5
286-211-4	13	15	39	16.5	15.5	106	16 x 37
286-211-5	16	18	46	22	20	130	20 x 52
286-211-6	19/20	23	57	26	24	162	24 x 73

Technical Data

SKU	Chain Dia	W.L.L.	M.P.F.	M.B.F.	Weight
	mm	t	kN	kN	kgs
286-211-1	6	1.4	35.3	56.5	0.25
286-211-2	7-8	2.5	62.8	100	0.6
286-211-3	10	4	98.2	157	1.14
286-211-4	13	6.7	166	265	2.6
286-211-5	16	10	251	402	4.8
286-211-6	19/20	16	393	628	7.2
