Description
Description

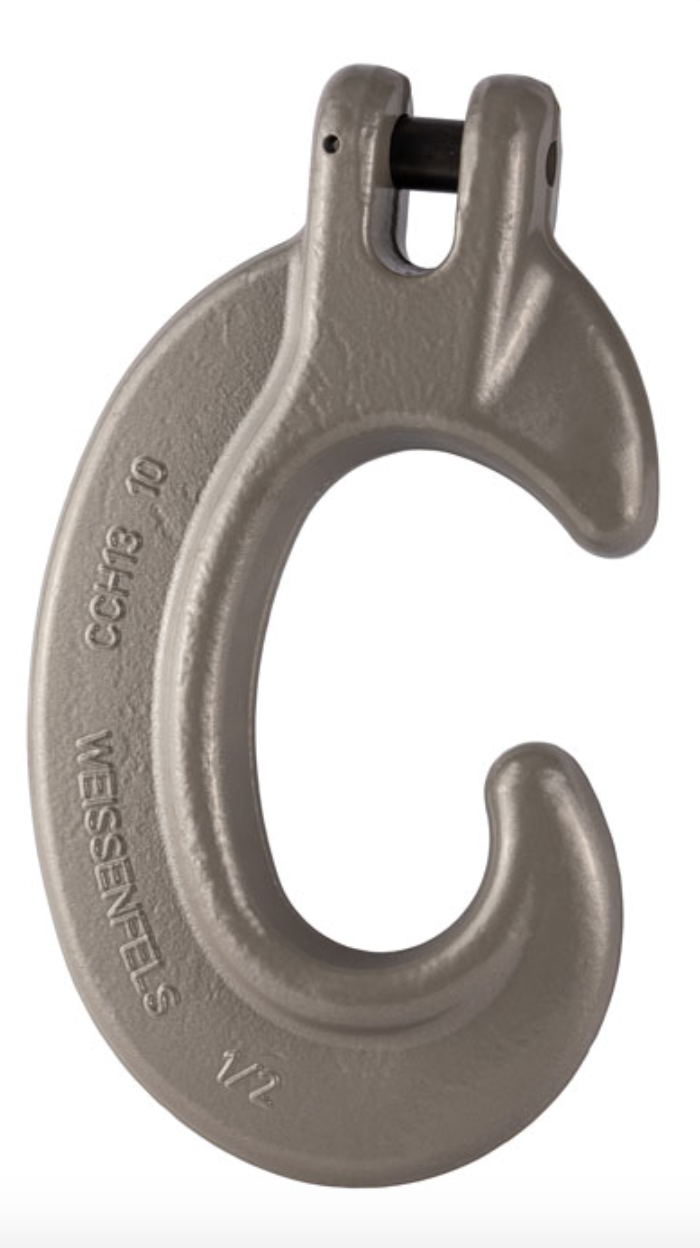

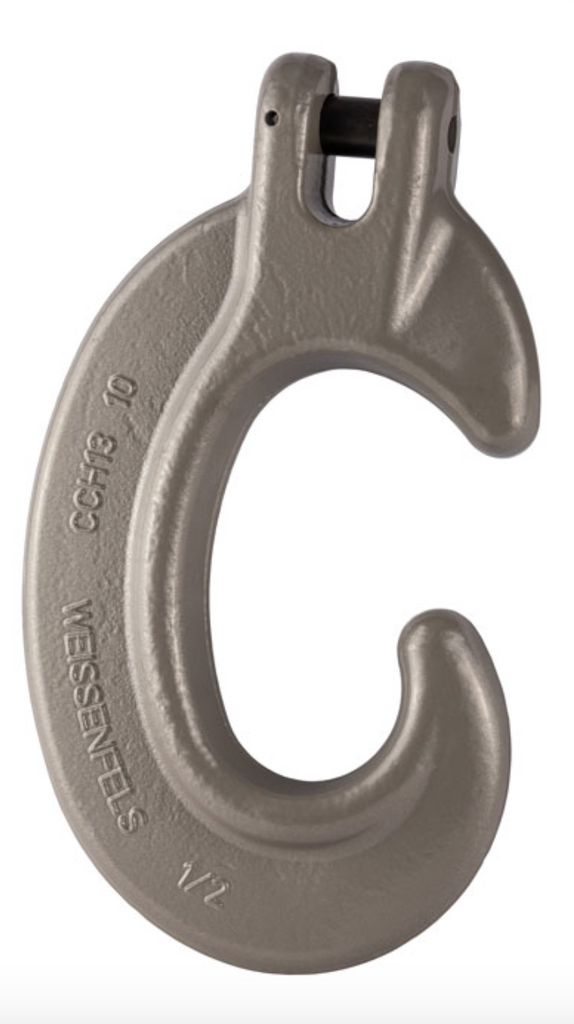

- Grade 10 alloy steel, quenched and tempered.
- Grey painted finish.
- Meets the performance requirements of BS EN 1677-4 +25% of loads.
- Clevis fitting enables direct connection to chain.
- Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
- Certification - Declaration of Conformity
Spec
| SKU |

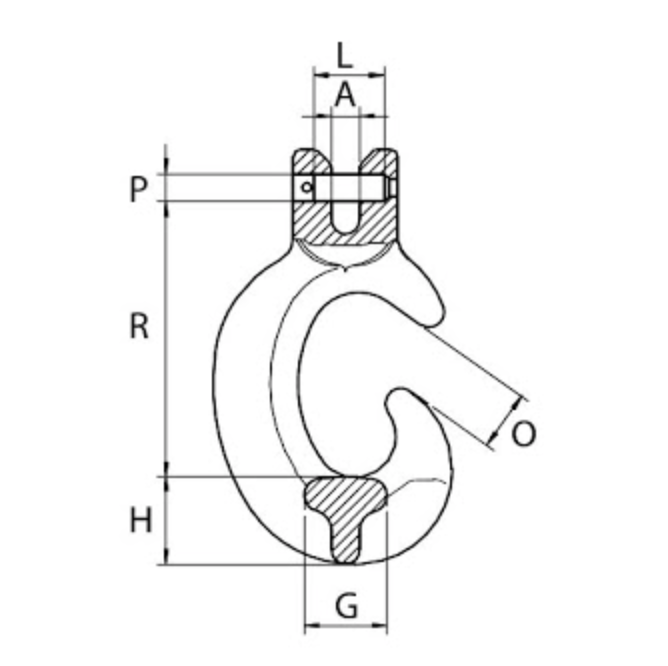

Chain Dia | A | G | H | O | R | P x L |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| 286-231-1 |
7/8 | 9.5 | 22 | 27.5 | 20 | 90 | 9.6 x 23 |
| 286-231-2 |
10 | 12 | 28 | 38.5 | 28 | 129 | 12.5 x 29.5 |
| 286-231-3 |
13 | 15 | 35 | 51 | 41 | 166 | 16 x 37 |
Technical Data
| SKU | Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|---|
| mm | t | kN | kN | kgs | |
| 286-231-1 | 7/8 | 2.5 | 62.8 | 100 | 0.58 |
| 286-231-2 | 10 | 4 | 98.2 | 157 | 1.46 |
| 286-231-3 | 13 | 6.7 | 166 | 265 | 3 |
