Goliath

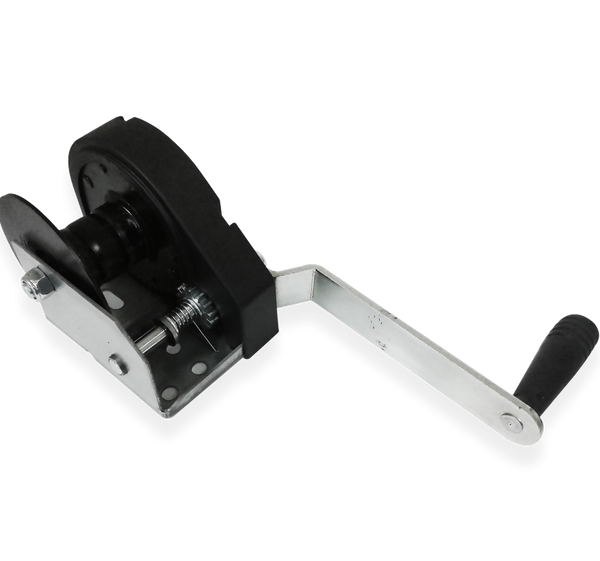

Goliath TR9 Hand Winch for use with Cable, with Removable Handle Double Cover
Goliath TR9 Hand Winch for use with Cable, with Removable Handle Double Cover
Regular price
£56.00 GBP
Regular price
£0.00 GBP
Sale price
£56.00 GBP
Unit price
per
Taxes included.
Couldn't load pickup availability
Goliath TR9 Hand Winch for Cable, with Removable Handle Double Cover
Winches with new generation high safety self-braking system.
Goliath brake winch for cable.
- Permanent self-braking system (patented).
- First layer capacity 485kg
- Last layer capacity 240kg
Spec
| Type | TR9 |
|---|---|
| SKU | 151-15-11 |
| Lifting Capacity 1st Layer: | 485kg |
| Lifting Capacity Last Layer: | 240kg |
| Cable 1 Ø (mm) / length (m) | 5 / 12 |
| Cable 2 Ø (mm) / length (m) | 4 / 20 |
| Number of Speeds | 1 |
| Reduction Ratio 1 | 1/3.5 |
| Reduction Ratio 2 | - |
| Reduction Ratio 3 | - |
| Drum Hub Ø | 45mm |
| Rolling Load Capacity Slope 20% (kg) | 750 |
| Type of Winch | Horiz. Setup/Fix Hand |
| Handle | Fixed |
| Handle Length: | - |
| Weight: | 2.6kg |
Downloads:
Legislation
The EN13157 A1 standard defines the essential criteria required to ensure your safety and justify the CE mark on winches (in the context of European use).
