Goliath - N Range of Pulling Winches with Ratchet

Goliath SKU: 151-9-2

1 3

Goliath - N Range of Pulling Winches with Ratchet

Goliath N Range of Pulling Winches with Ratchet (for use with Wire Rope) Winches for pulling applications only (0% incline or load independently secured) Reversible ratchet with... Read More

Goliath SKU: 151-9-2

€60,22

RRP TODAY'S PRICE €60,22

In stock (4)

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Goliath N Range of Pulling Winches with Ratchet (for use with Wire Rope)

Winches for pulling applications only (0% incline or load independently secured)
Reversible ratchet with 3 positions, except for 3N1 models (2 positions)
Speed options: 1 to 3 speeds available
- 1 speed: 3N1, 5N1, 7N1, 9N1
- 2 speeds: 16N2, 16N2F
- 3 speeds: 25N3F
Surface treatment: Zinc plated
Pulling capacity: From 470kg to 2,700kg
Handle options:
- Fixed on 3N1, 5N1, 7N1, 9N1
- Removable on 16N2, 16N2F, 25N3F
Speed-reducing brake: Available on 16N2F and 25N3F models

The N range of winches can be installed as a column or base mounted winch, or can wall mounted when purchased with optional wall mounting plate.

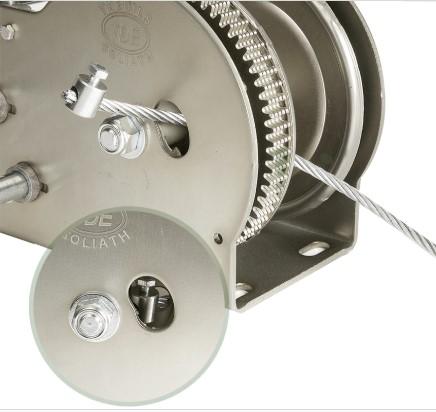

These winches are designed for use with wire rope, which is not included as standard but can be purchased as an optional extra.

*Important note for all users / purchasers :

These winches are neither designed according to EC standard nor for the transport of people or for lifting applications and must not be used for such purposes.

When in operation DO NOT reverse or change the ratchet position until the load has been secured safely.

Do not come with safety brake.

Like any other ratchet winch on the market, the N series cannot be labelled CE.
Attention: any pulled or lifted load must be secured by another device while operating (except on a horizontal surface).

Spec

**Warning: These winches are not designed according to EC standard
Do not come with safety brake

Model	SKU	Pulling Capacity	Handle	Brake	Maximum Cable 1 Ø (mm) / length (m)
Goliath 3N1	151-9-1	470kg	Fixed	No	ø3/22m

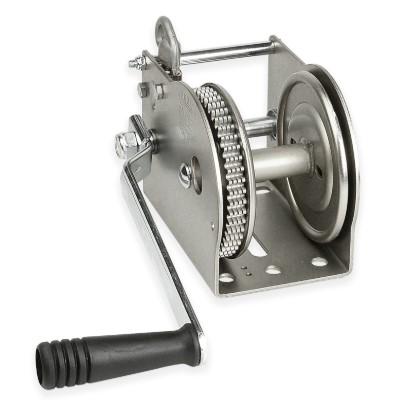

Goliath 5N1	151-9-2	596kg	Fixed	No	ø5/17m

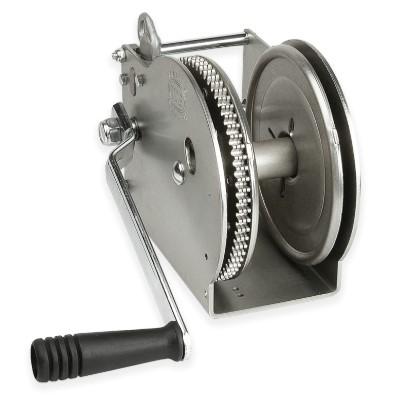

Goliath 7N1	151-9-3	723kg	Fixed	No	ø5/32m
Goliath 9N1	151-9-4	894kg	Fixed	No	ø6/21m
Goliath 16N2F	151-9-5	1556kg	Removable	No	ø7/14m
Goliath 16N2F	151-9-6	1556kg	Removable	Speed reducing brake	ø7/14m
Goliath 25N3F	151-9-7	2741kg	Removable	Speed reducing brake	ø8/14m
