Gebuwin ATEX Spur Gear Hand Winch 600kg

Name: Gebuwin ATEX Spur Gear Hand Winch 600kg
Brand: Gebuwin
SKU: 156-15-32
Price: 770.83 EUR
Availability: OutOfStock

Gebuwin SKU: 156-15-32

1 1

Gebuwin ATEX Spur Gear Hand Winch 600kg

Gebuwin ATEX Spur Gear Hand Winch 600kg This spur gear winch is very efficient and safe due to its spur gear transmission and developed design. The load-pressure brake with a double ratchet system... Read More

Gebuwin SKU: 156-15-32

€770,83

RRP TODAY'S PRICE €770,83

Out of stock (0)

Tax included.

Product variants

Quantity

Buy from our UK store

Description

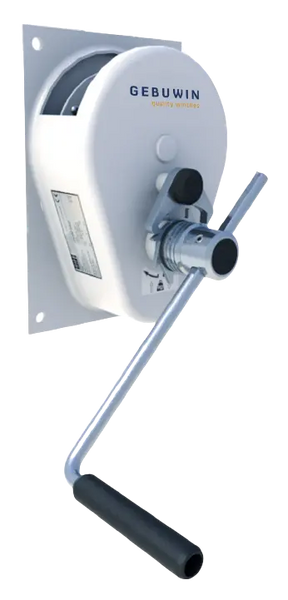

Gebuwin ATEX Spur Gear Hand Winch 600kg

This spur gear winch is very efficient and safe due to its spur gear transmission and developed design. The load-pressure brake with a double ratchet system makes it very reliable. Extra attention has also been paid to the semi-closed housing.

robust and safe lifting winch in compliance with EN13157
static safety factor 4
load pressure brake with double ratchet system for safe stable hold of the load
cable outlet upwards
adjustable crank
suitable for wall mounting
1 layer of paint

Spec

Capacity 1st layer	600 kg
Capacity 4th layer	408 kg
Capacity top layer	336 kg
Rope diameter-Ø	6 mm
Rope storage 1st layer	1 meter
Rope storage 4th layer	7 meter
Rope storage top layer	12,3 meter
Lift per crank rotation	28 mm
Crank effort at full load	10 daN
Weight (without rope)	11 kg
