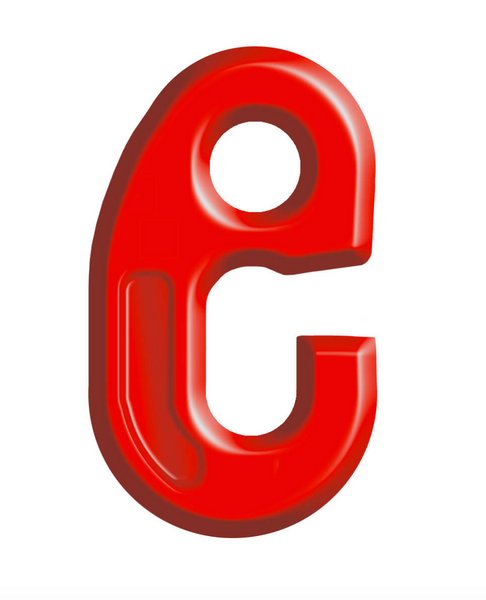

High Tensile G Hook
- High tensile steel, quenched and tempered.
- Red painted finish.
- Certification available
Spec
| SKU |

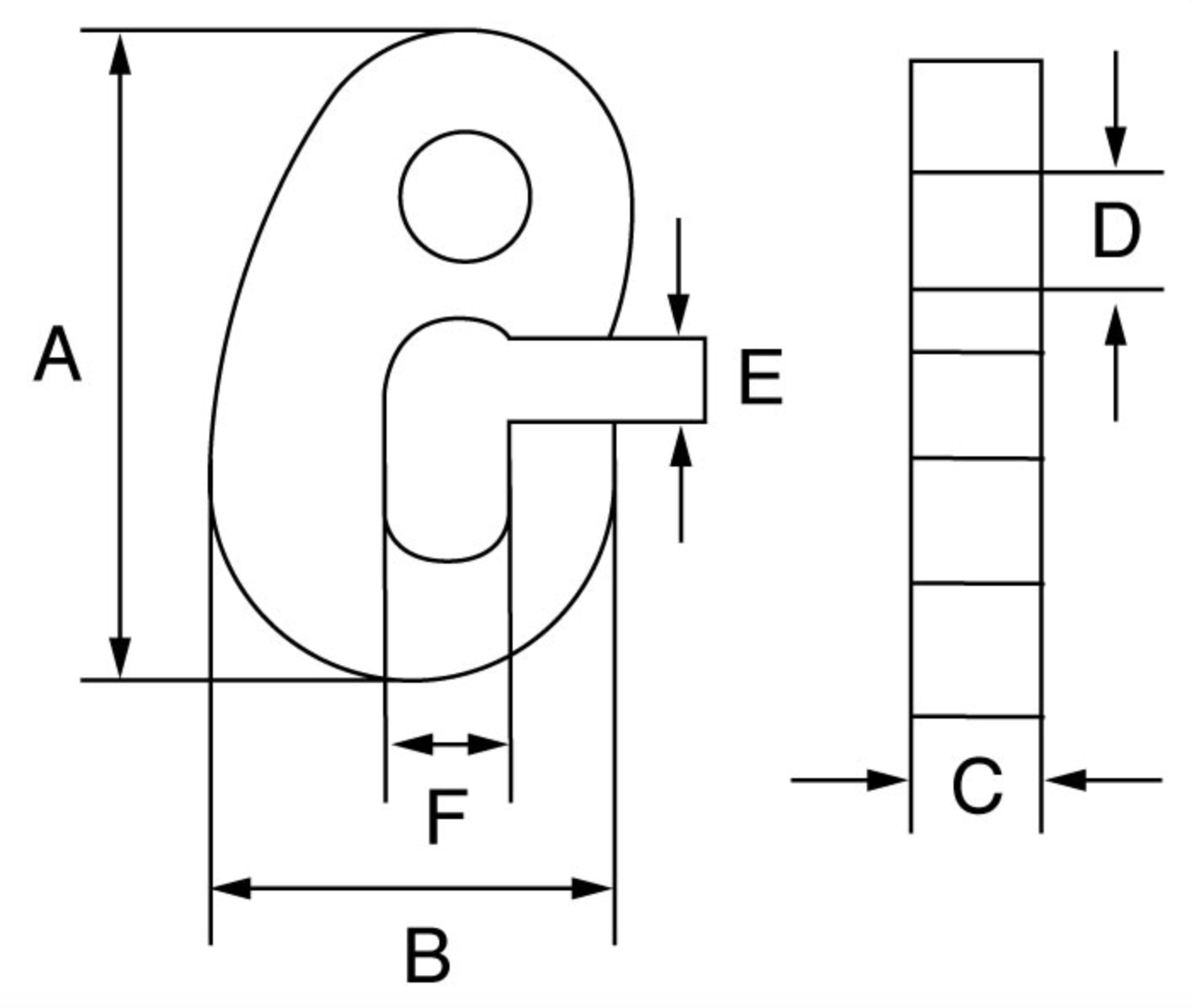

W.L.L. | P.L. | M.B.L. | A | B | C | D | E | F | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| t | t | t | mm | mm | mm | mm | mm | mm | kgs | |
| 286-1113-X |
2 | 4 | 8 | 126 | 81 | 26 | 26 | 16 | 27 | 0.92 |
| 286-1113-1 |
4.2 | 8.4 | 16.8 | 126.5 | 80 | 28 | 27.5 | 15 | 32 | 1.46 |
| 286-1113-2 |
6.4 | 12.8 | 25.6 | 180 | 105.5 | 31 | 31 | 19 | 34 | 2.1 |
