Runpotec

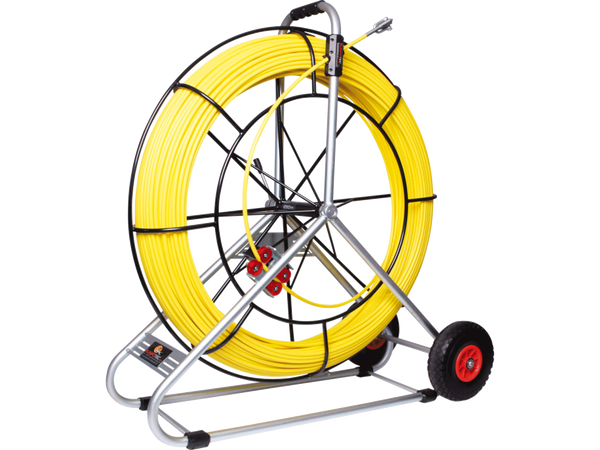

RUNPOTEC - FIBERGLASS ROD Ø 11 MM WITH STEEL CAGE INCL. NEW DOUBLE-OUTLET SYSTEM 300m

Name: RUNPOTEC - FIBERGLASS ROD Ø 11 MM WITH STEEL CAGE INCL. NEW DOUBLE-OUTLET SYSTEM 300m
Brand: Runpotec
SKU: 123-1-11
Price: 1945.96 EUR
Availability: OutOfStock

RUNPOTEC - FIBERGLASS ROD Ø 11 MM WITH STEEL CAGE INCL. NEW DOUBLE-OUTLET SYSTEM 300m

SKU: 123-1-11

RUNPOTEC - FIBERGLASS ROD Ø 11 MM WITH STEEL CAGE INCL. NEW DOUBLE-OUTLET SYSTEM 300m

SKU: 123-1-11

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigging-eu.co.uk

0% Finance Available

Through PayPal Credit - Find out more

View full details

Description

Cable puller glass fibre rod Ø 11 mm - RUNPOTEC RTG Ø 12 mm thread with robust steel reel (galvanised/powder coated) Ø 1000 mm incl. new double run-out system (automatic run-out brake and fast run-out), additional parking brake. The shackle also has a transition thread to RTG Ø 6 mm to adapt various guide rods (RUNPOSTICKS), guide probes, cable pulling sleeves, multifunction camera RC 2 and the like. Glass fibre rod total breaking load 6200 kg, total breaking load 580 kg.
Optimal field of application: for pipe diameters 80 - 250 mm
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.
Scope of delivery: 1 piece of glass fibre rod Ø 11 mm with steel reel and new double outlet system, end sleeves on both sides (start/end),1 x metre counter, 1 x shackle

ADVANTAGES

incl. steel reel and metre counter
Double run-out system (automatic run-out brake and fast run-out)
Additional parking brake
Glass fibre rod total breaking load up to 6200 kg
Total breaking load 580 kg
Bending radius 770 mm

Spec

Dimensions:	L 1100 x B 1100 x H 560 mm
Length:	300 Meter
Bending radius:	770 mm
Recommended tube-Ø:	80 - 250 mm
Weight:	59,60 kg
Total tension load:	580 kg
Material:	fiberglass core with PP sheath
Ø Rod:	11 mm
EAN-Code:	9120045474534
