Eureka Wirelock Rope Clamp for Lifting

GT SKU: 286-803-1

1 3

Eureka Wirelock Wire rope clamp approved for lifting. Rope dia 4-5 and 6 – cast steel zinc plated finish. Rope dia 8 to 15-16 – drop forged steel hot dipped galvanised. Certification available DoC Specification SKU Rope Dia Bolt No. Torque L D Weight mm Nm mm mm kgs/100 286-803-1 4-5 2 6 27 22 6.5 286-803-2 6 2 15 42 2 Read More

€29,22

RRP TODAY'S PRICE €29,22

In stock (23)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

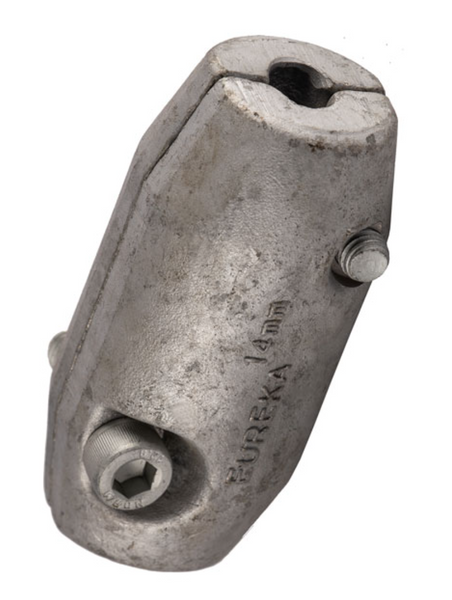

Eureka Wirelock

Wire rope clamp approved for lifting.
Rope dia 4-5 and 6 – cast steel zinc plated finish.
Rope dia 8 to 15-16 – drop forged steel hot dipped galvanised.
Certification available DoC

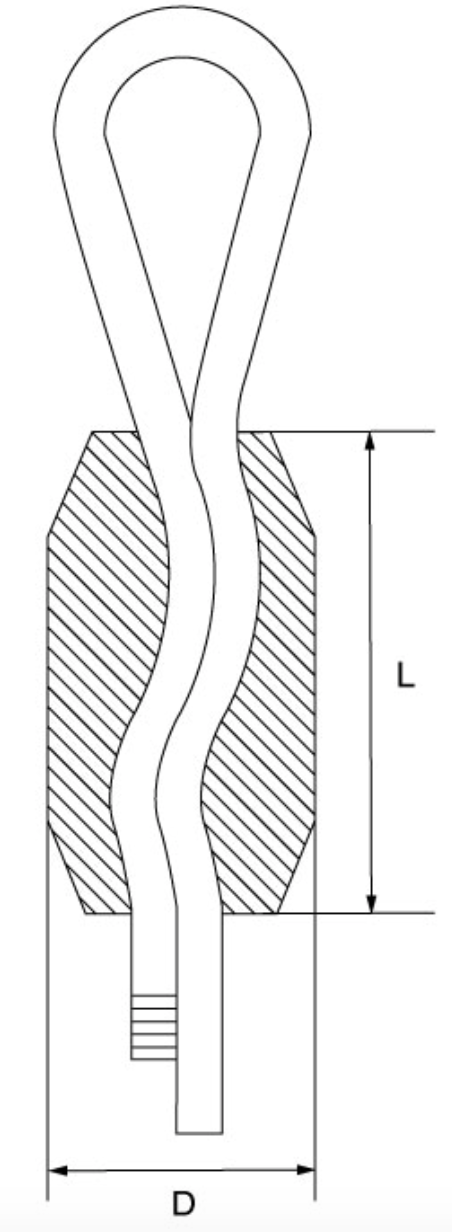

Specification

SKU	Rope Dia	Bolt No.	Torque	L	D	Weight
	mm		Nm	mm	mm	kgs/100
286-803-1	4-5	2	6	27	22	6.5
286-803-2	6	2	15	42	28	14
286-803-3	8	2	18	50	33	24
286-803-4	9-10	2	30	63	42	52
286-803-5	11	2	30	62	43	52
286-803-6	12-13	2	70	82	48	80
286-803-7	14	2	70	106	50	115
286-803-8	15-16	4	115	100	62	170
