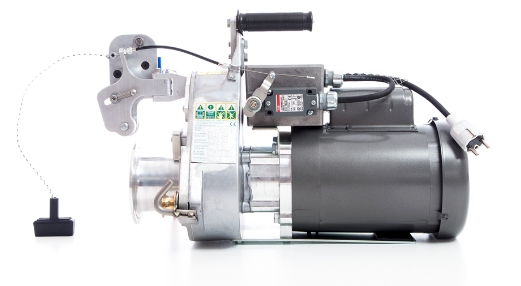

PCT1800 - Electric 230v | 820kg Pulling & 250kg Lifting Capstan Winch

Name: PCT1800 - Electric 230v | 820kg Pulling & 250kg Lifting Capstan Winch
Brand: Portable Winch
SKU: 167-4-1
Price: 5267.82 EUR
Availability: OutOfStock

Portable Winch SKU: 167-4-1

1 7

PCT1800 230v Electric Winch Pull/Lift Please note this is a special order winch from the factory, please email sales@rigginguk.co.uk for a formal quotation. This electric powered winch... Read More

€5.267,82

RRP TODAY'S PRICE €5.267,82

Out of stock (0)

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Accompanying product image

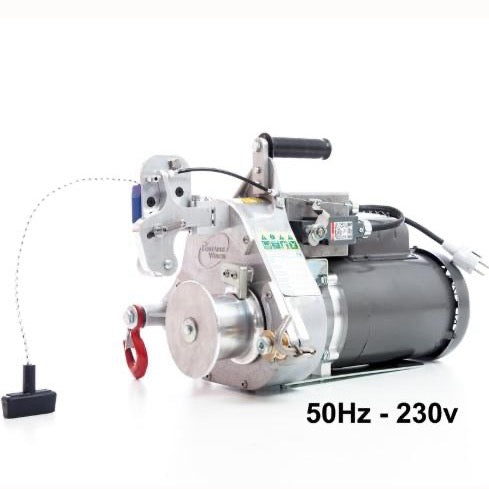

PCT1800 230v Electric Winch Pull/Lift

Please note this is a special order winch from the factory, please email sales@rigginguk.co.uk for a formal quotation.

This electric powered winch is ideal for indoor applications such as pulling wire through conduits or lifting equipment.

It can lift loads of 250 kg in a single line and a block and tackle system will increase the lifting capacity to 500 kg.

For lifting purposes, it is equipped with a rope grabbing system which will hold a load in position; allowing the operator to work safely.

The electric motor is activated by simply pulling on the rope. As soon as the operator stops pulling, the drum stops rotating, preventing rope damage. For the operator’s safety, it is equipped with a rope grabbing system which will prevent the rope from sliding inadvertently.

The PCT1800 is recommended for situations when gas-powered (petrol) winches cannot be used and is a good alternative when noise is an issue.

Find out more by downloading the user manual.

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Motor: Baldor International Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

GTIN / EAN13: 690581001246

Specification

PCT1800 230v Electric Winch Pull/Lift Ref: 167-4-1

Manufacturer	PORTABLE WINCH
Max Pull Capacity	820kg
Max Lifting Capacity	250kg
Installed Capstan Size	85mm (Optional 57mm Drum Available - Increases Capacity)
Speed with Installed Capstan	8.8 m/min
Rope Size	Min 12mm \| Max 13mm \| Ideal 12mm
Engine/Motor	C Electric Baldor TEFC 115/230 VAC - 1 ph - 3/4 HP - 60 Hz
Gear Ratio	110:1
Dry Weight	24.0kg
GTIN / EAN13	690581001246
