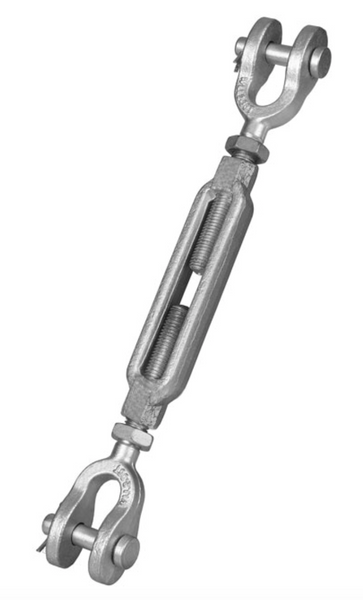

Drop Forged Turnbuckle Jaw/Jaw

SKU: 286-900-1

Drop Forged Turnbuckle Jaw/Jaw

SKU: 286-900-1

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigging-eu.co.uk

0% Finance Available

Through PayPal Credit - Find out more

View full details

Description

Drop Forged Turnbuckle Jaw/Jaw - US Style

Drop forged, high tensile steel, SAE 1035 or SAE 1045.
Hot dipped galvanised finish.
Meets the performance requirements of ASTM F1145-92 (formerly US Fed. Spec. FF-T-791b).
Temperature range -20ºC up to +200ºC.
Proof load tested to 2.5 times the W.L.L.
Minimum breaking load is 5 times the W.L.L.
UNC Threads.
All items available with lock nuts.
Up to 5/8″ with safety bolt, 3/4″ and above with cotter pins.
Marked with CE, W.L.L, manufacturers ID, size, traceability code and L/R.

Certification available DoC
Used for adjusting and ensuring proper tension in roped, cabled, wired, and rod systems. Threaded inserts at both ends, allow for adjustments by rotating the body. Its versatile design allows for precise increments, making it a valuable tool for various applications such as boat rigging, fence tensioning, lifting rigs, and even in theatrical and boxing/wrestling settings.

Spec

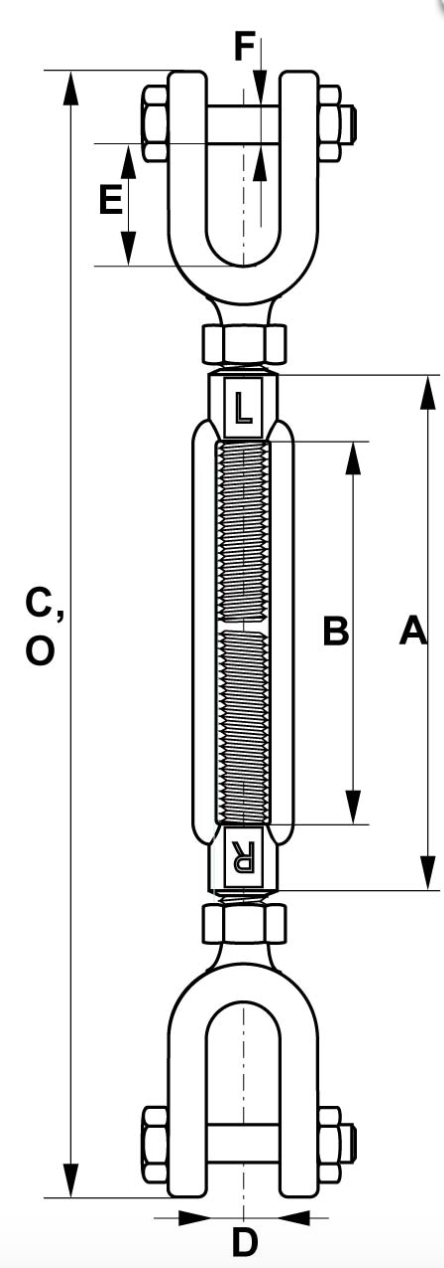

SKU	Size	Take Up	W.L.L.	A	B	D	E	F	C	O	Weight
	inches	inches	t	mm	mm	mm	mm	mm	mm	mm	kgs
286-900-X	1/4	4	0.23	120	102	11.5	15.75	7.5	200	302	0.16
286-900-X	5/16	4 1/2	0.36	138	114	12.7	21.2	7.6	244	358	0.24
286-900-1	3/8	6	0.54	180	152	13.7	21.5	9	290	442	0.71
286-900-2	1/2	6	1	190	152	16	26.5	11	330	482	0.37
286-900-3	1/2	9	1	267	229	16	26.5	11	406	635	0.79
286-900-4	1/2	12	1	343	305	16	26.5	11	480	785	1.09
286-900-5	5/8	6	1.59	203	152	21	33	14	378	530	1.35
286-900-6	5/8	9	1.59	279	229	21	33	14	454	683	1.53
286-900-7	5/8	12	1.59	355	305	21	33	14	530	835	1.79
286-900-8	5/8	18	1.59								1.99
286-900-9	3/4	6	2.36	213	152	26	37.25	17.5	422	574	1.99
286-900-10	3/4	9	2.36	289	229	26	37.25	17.5	498	727	2.48
286-900-11	3/4	12	2.36	365	305	26	37.25	17.5	574	879	2.68
286-900-12	3/4	18	2.36	517	451	26	37.25	17.5	726	1183	3.32
286-900-X	7/8	6	3.27	222	152	31	42.75	20.5	466	618	3.15
286-900-13	7/8	12	3.27	374	304	31	42.75	20.5	618	922	3.96
286-900-14	7/8	18	3.27	527	457	31	42.75	20.5	770	1227	5.09
286-900-15	1	6	4.54	233	152	33	52	24	510	662	4.44
286-900-16	1	12	4.54	385	305	33	52	24	662	967	5.69
286-900-17	1	18	4.54	537	457	33	52	24	814	1271	6.74
286-900-18	1	24	4.54	690	610	33	52	24	966	1576	8.03
286-900-19	1 1/4	6	6.89	236	152	47	70.5	31	598	598	8.55
286-900-20	1 1/4	12	6.89	388	305	47	70.5	31	750	1055	10.27
286-900-21	1 1/4	18	6.89	541	457	47	70.5	31	902	1359	11.99
286-900-X	1 1/4	24	6.89	693	610	47	70.5	31	1054	1664	13.69
286-900-22	1 1/2	12	9.71	403	305	57	70.5	37	800	1105	13.56
286-900-23	1 1/2	18	9.71	555	457	57	70.5	37	952	1409	16.2
286-900-24	1 1/2	24	9.71	708	610	57	70.5	37	1104	1714	18.88
286-900-25	1 3/4	18	12.7	571	457	66	85	44	1046	1503	25.15
286-900-26	1 3/4	24	12.7	724	610	66	85	44	1198	1808	28.06
286-900-27	2	24	16.8	740	610	66.3	92	54	1340	1950	43.71
286-900-28	2 1/2	24	27.2	795	610	78	110.8	60.5	1478	2088	81.8
286-900-29	2 3/4	24	34	795	610	93.5	104.5	73	1562	2172	95.14
