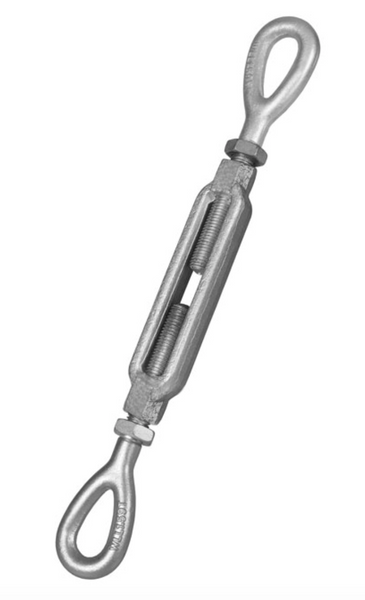

Drop Forged Turnbuckle Eye/Eye

GT SKU: 286-901-1

1 3

Drop Forged Turnbuckle Eye/Eye

Drop Forged Turnbuckle Eye/Eye - US Style Drop forged, high tensile steel, SAE 1035 or SAE 1045. Hot dipped galvanised finish. Meets the performance requirements of ASTM F1145-92 (formerly US Fed. Spec. FF-T-791b). Temperature... Read More

GT SKU: 286-901-1

€4,66

RRP TODAY'S PRICE €4,66

In stock (20)

Tax included.

Product variants

Quantity

Buy from our UK store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Drop Forged Turnbuckle Eye/Eye - US Style

Drop forged, high tensile steel, SAE 1035 or SAE 1045.
Hot dipped galvanised finish.
Meets the performance requirements of ASTM F1145-92 (formerly US Fed. Spec. FF-T-791b).
Temperature range -20ºC up to +200ºC.
Proof load tested to 2 times the W.L.L.
Minimum breaking load is 5 times the W.L.L.
UNC Threads.
All items available with lock nuts.
Marked with CE, W.L.L, manufacturers ID, size, traceability code and L/R.

Certification - Declaration of Conformity

Specification

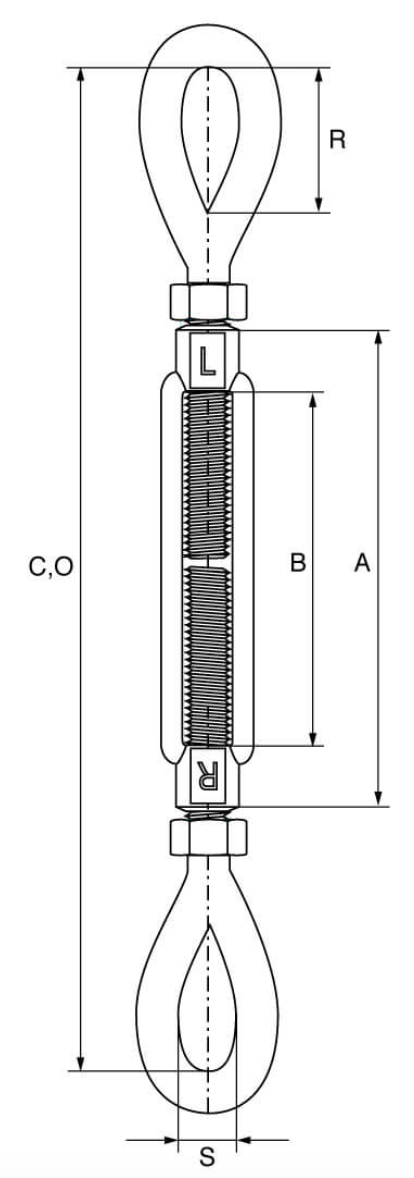

SKU	Size	Take Up	W.L.L.	A	B	R	S	C	O	Weight
	inches	inches	t	mm	mm	mm	mm	mm	mm	kgs
286-901-1	3/8	6	0.54	180	152	28.5	13.5	308	460	0.34
286-901-2	1/2	6	1	190	152	36.5	18	380	532	0.71
286-901-3	1/2	9	1	267	229	36.5	18	456	685	0.85
286-901-4	1/2	12	1	343	305	36.5	18	510	815	1
286-901-5	5/8	6	1.59	203	152	45	22.5	398	550	1.17
286-901-6	5/8	9	1.59	279	229	45	22.5	474	703	1.42
286-901-7	5/8	12	1.59	355	305	45	22.5	550	855	1.67
286-901-8	5/8	18	1.59							1.92
286-901-9	3/4	6	2.36	213	152	53	25.4	448	600	1.87
286-901-10	3/4	9	2.36	289	229	53	25.4	524	753	2.22
286-901-11	3/4	12	2.36	365	305	53	25.4	600	900	2.57
286-901-12	3/4	18	2.36	517	457	53	25.4	752	1209	3.27
286-901-13	7/8	12	3.27	374	304	60	32	630	934	3.77
286-901-14	7/8	18	3.27	527	457	60	32	782	1239	4.7
286-901-15	1	6	4.54	233	152	76	37	552	704	4.1
286-901-16	1	12	4.54	385	305	76	37	704	1009	5.33
286-901-17	1	18	4.54	537	457	76	37	856	1313	6.56
286-901-18	1	24	4.54	690	610	76	37	1010	1620	7.83
286-901-19	1 1/4	12	6.89	388	305	90	46	776	1081	9.1
286-901-20	1 1/4	18	6.89	541	457	90	46	928	1385	10.94
286-901-21	1 1/4	24	6.89	693	610	90	46	1080	1690	12.75
286-901-22	1 1/2	12	9.71	403	305	103	53.8	838	1143	12.93
286-901-23	1 1/2	18	9.71	555	457	103	53.8	990	1447	15.43
286-901-24	1 1/2	24	9.71	708	610	103	53.8	1144	1754	17.97
286-901-25	1 3/4	18	12.7	571	457	117	60.5	1076	1544	23.37
286-901-26	1 3/4	24	12.7	724	610	117	60.5	1230	1840	26.91
286-901-27	2	24	16.8	740	610	146	68	1400	2010	39.93
286-901-28	2 1/2	24	27.2	795	610	165	79	1490	2100	70.96
286-901-29	2 3/4	24	34	795	610	178	82.5	1562	2172	82.22
