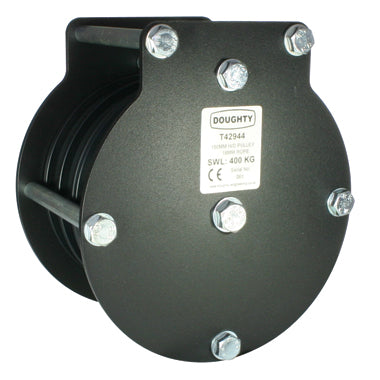

Doughty Heavy Duty Pulley, Quad Sheave, for Wire or Rope

A basic quadruple sheave pulley ready to accept any of our Doughty range of fixings.

Available from 100mm Diameter to 200mm Diameter, for Wire or Rope.

The recommended sizes and for Hand Ropes & Wires are:

100mm Diameter Sheave - 12mm Rope – 4mm Wire

150mm Diameter Sheave - 18mm Rope – 6mm Wire

200mm Diameter Sheave - 18mm Rope – 6mm Wire

Spec

300-54-4: 100mm (quad sheave) for wire - SWL 200 Kg

300-55-4: 150mm (quad sheave) for wire - SWL 400 Kg

300-56-4: 200mm (quad sheave) for wire - SWL 600 Kg

300-57-4: 100mm (quad sheave) for rope - SWL 200 Kg

300-58-4: 150mm (quad sheave) for rope - SWL 400 Kg

300-59-4: 200mm (quad sheave) for rope - SWL 600 Kg
