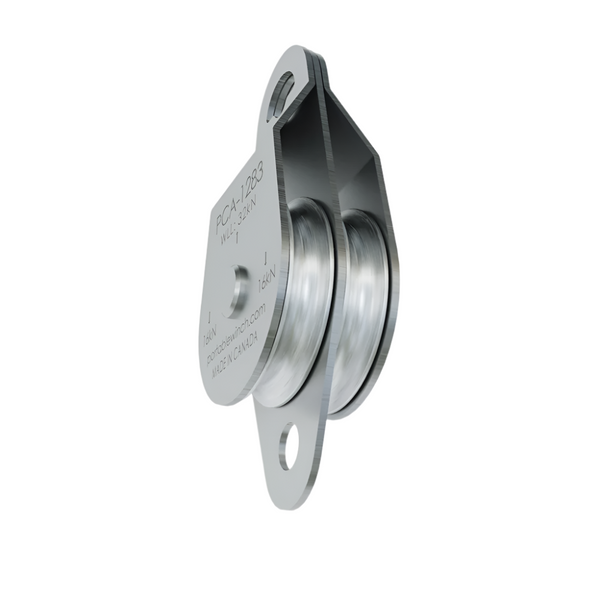

Double Swing Side Pulley Sheave 76mm (Snatch Block for 10mm Rope)

Stainless Steel Double Swing Side Pulley Sheave 76mm (Snatch Block)

This swing-side pulley opens to install rope and keep it from going out.

Its two 76 mm aluminium sheaves are mounted on a self-lubricating bronze bearing and provide an efficiency of 98%. The sides, the centre plate and the shaft are made of stainless steel.

An excellent pulley, robust and durable. A hole at the bottom of the centre plate allows to attach the end of the rope with a carabiner when needed.

Use 50kN carabiners (PCA-1702) or 70kN (PCA-1701) to attach the pulley to a polyester sling.

When using this pulley along with the single pulley PCA-1275, you can quadruple the pulling strength. With 2 of these double pulleys, 5 tons of pulling power will be generated when using the PCW3000-Li.

Ideal rope diameter : 10 mm

Manufactured in Canada.

SPECIFICATIONS

Minimum Breaking Load (metric) : 90 kN (9185 kg)
Working Load Limit (metric) : N/A
Material : Sides: Stainless steel. Sheaves: Aluminum

WEIGHT & DIMENSIONS

Weight (metric) : 0,82 kg
Diameter (metric) : 76 mm
Length (metric) : 18,34 cm
Width (metric) : 7,95 cm
Height (metric) : 4,88 cm

ROPE

Minimum diameter (metric) : 6 mm
Maximum diameter (metric) : 10 mm

ADDITIONAL INFORMATION

Additional Information : Not designed for steel cable.
Additional information : The NEWTON is the International System unit for force; it is equal to the amount of net force required to accelerate a mass of one kilogram at a rate of one meter per second squared. --- The WORKING LOAD LIMIT (WLL) is the maximum load which should not be exceeded under any condition. --- The MINIMUM BREAKING STRENGTH (MBS) is observed during a destructive test. You should divide it by an appropriate safety factor.
