Cartec Grade 6 AISI 316L Shortening Clutch
Cartec SKU: 286-316-1
Cartec Grade 6 AISI 316L Shortening Clutch
Grade 6 Shortening Clutch Material: Grade 6 stainless... Read More
Cartec SKU: 286-316-1
Regular price
€173,13
Regular price
RRP
Sale price
TODAY'S PRICE
€173,13
Unit price
per
In stock
Tax included.
This product is NOT available Online.
Please contact us via email for availability and delivery to Europe sales@rigging-eu.com
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk
Description
Description

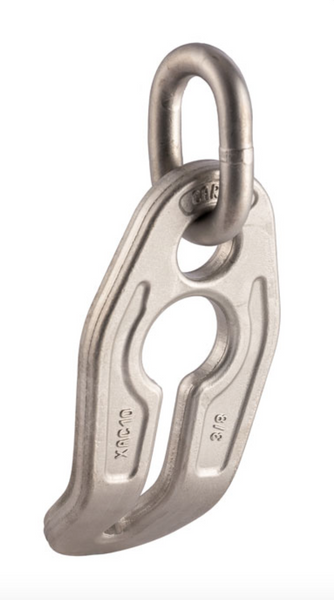

Grade 6 Shortening Clutch
- Material: Grade 6 stainless steel, AISI 316L
- Finish: Surface blasted for a uniform, smooth finish
- Markings: Clearly marked with CE, material grade, manufacturer's ID, size, product ID mark, and traceability code
- Support: Full CAD support available upon request
- Certification: Declaration of Conformity (DoC)
Spec

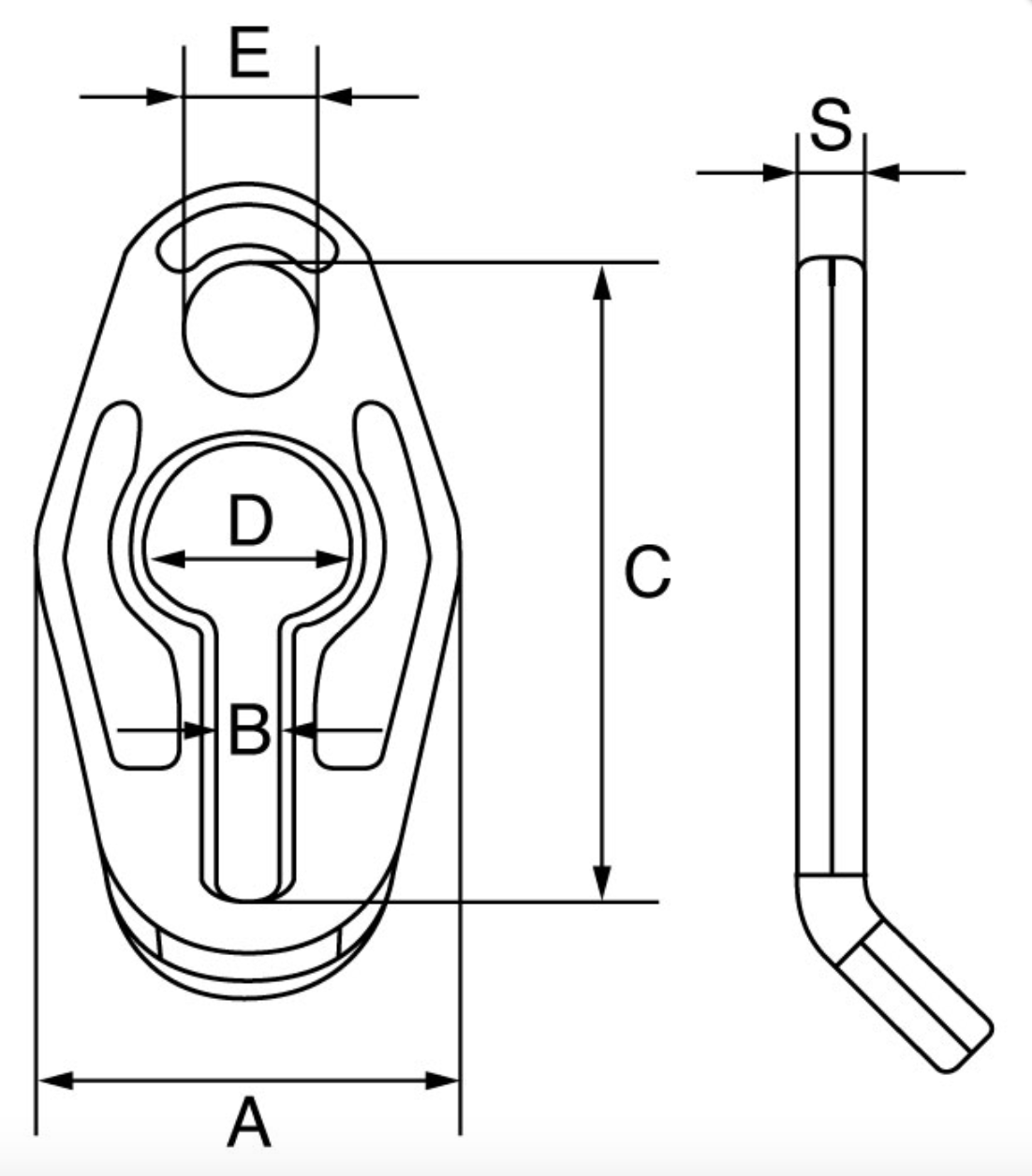

| SKU | Chain Dia | A | B | C | D | E | S |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| 286-316-1 | 5/6 | 55 | 8 | 81 | 26 | 16 | 8.5 |
| 286-316-2 | 7/8 | 71 | 11 | 110 | 34 | 22 | 10.5 |
| 286-316-3 | 10 | 90 | 12 | 135 | 40 | 26 | 13 |
| 286-316-4 | 13 | 112 | 17 | 170 | 52 | 32 | 16.5 |
| 286-316-5 | 16 | 135 | 20.5 | 202 | 64 | 38 | 20 |
| Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|
| mm | t | kN | kN | kgs |
| 5/6 | 0.9 | 18 | 36 | 0.25 |
| 7/8 | 1.6 | 32 | 63 | 0.59 |
| 10 | 2.5 | 50 | 99 | 1.13 |
| 13 | 4.25 | 84 | 167 | 2.37 |
| 16 | 6.3 | 124 | 248 | 4.12 |
