Short Link Stainless Steel Chain AISI 316L Grade 6

Cartec SKU: 286-310-1

1 3

Short Link Stainless Steel Chain AISI 316L Grade 6 Grade 6, stainless steel, AISI 316L (1.4404) and... Read More

Cartec SKU: 286-310-1

€49,68

RRP TODAY'S PRICE €49,68

In stock

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Short Link Stainless Steel Chain AISI 316L Grade 6

Grade 6, stainless steel, AISI 316L (1.4404) and duplex stainless steel (1.4462) ensuring maximum corrosion resistance.
Surface blasted, uniform smooth finish.
Factor of safety 4:1
Certification available EC DoC

** THIS ITEM IS SOLD BY THE METRE

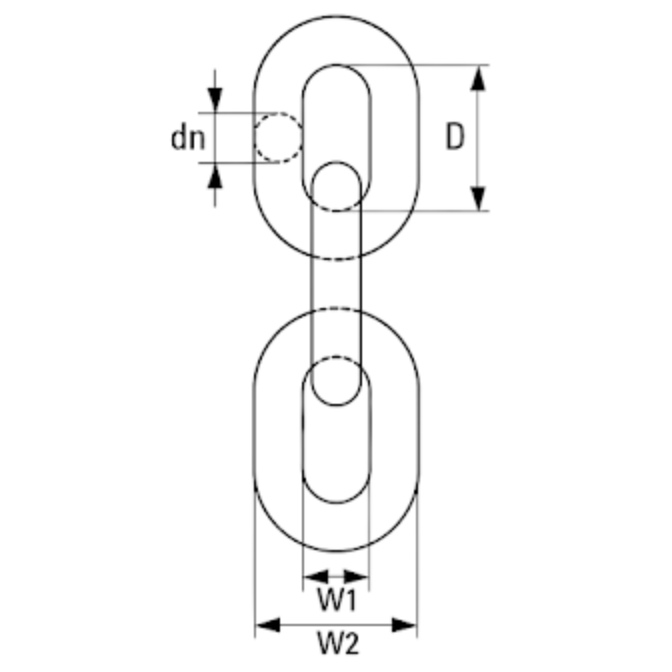

SKU	Part No.	Dia	D	W1	W2
		mm	mm	mm	mm
286-310-1	C6XC818206	6	18	7.8	22.2
286-310-2	C6XC818207	7	21	9.1	25.9
286-310-3	C6XC818208	8	24	10.4	29.6
286-310-4	C6XC818210	10	30	13	37
286-310-5	C6XC818213	13	39	16.9	48.1
286-310-6	C6XC818216	16	48	20.8	59.2

SKU	Chain Dia	W.L.L.	M.B.F.	Tolerance	Weight
	mm	t	kN	mm	kgs/m
286-310-1	6	0.9	36	+/- 0.5	0.8
286-310-2	7	1.25	50	+/- 0.6	1.15
286-310-3	8	1.6	63	+/- 0.7	1.3
286-310-4	10	2.5	98	+/- 0.9	2.14
286-310-5	13	4.25	170	+/- 1.2	3.65
286-310-6	16	6.3	248	+/- 1.4	7.6
