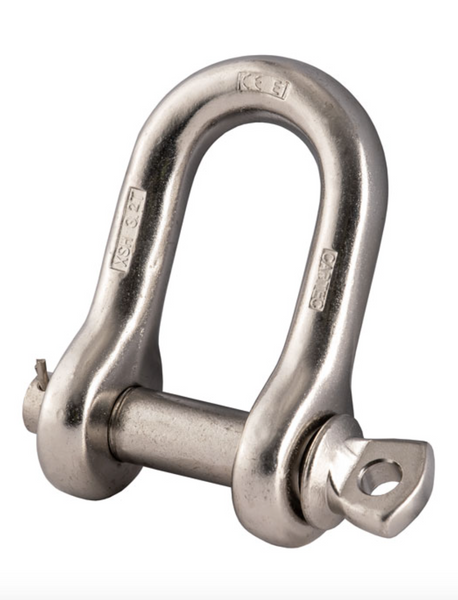

Grade 6 Dee Shackle with Screw Collar Pin
  • Material: Grade 6 stainless steel, AISI 316L.
  • Finish: Surface blasted for a uniform, smooth finish.
  • Markings: Clearly marked with CE, W.L.L, manufacturer's ID, product ID mark, and traceability code.
  • Support: Full CAD support available upon request.
  • Certification: Declaration of Conformity (DoC)

      Spec

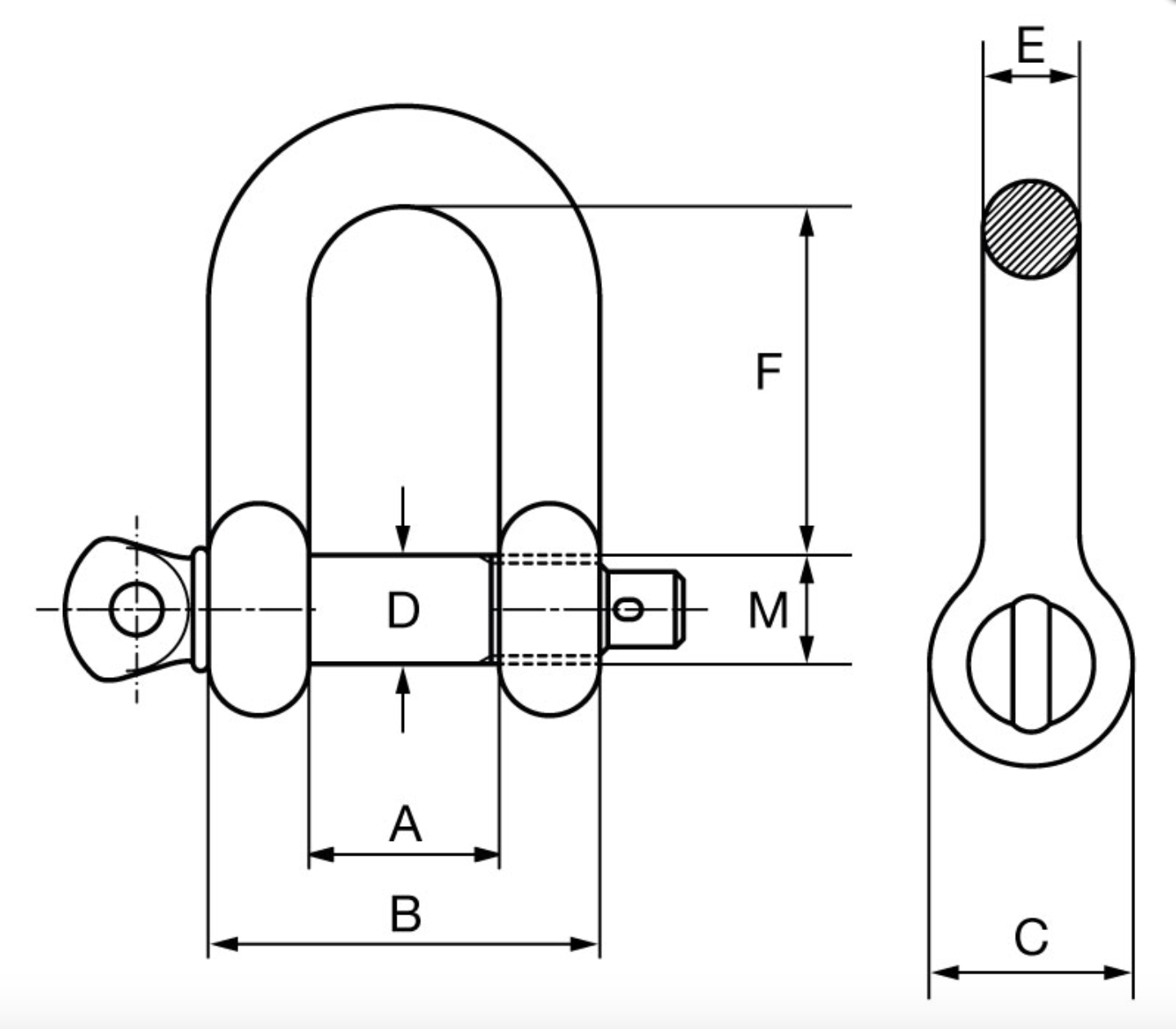

      SKU A B C D E F M
      mm mm mm mm mm mm mm
      286-317-1 18 34 18 9 8 33 M10
      286-317-2 25 49 25 13 12 40 M14
      286-317-3 32 64 32 17 16 60 M18
      286-317-4 41 79 47 21 19 78 M22
      286-317-5 56 106 60 29 25 109 M30
      286-317-6 76 144 75 38 34 152

      M39


      SKU W.L.L. M.P.F. M.B.F. Weight
      t kN kN kgs
      286-317-1 0.5 10 20 0.07
      286-317-2 1.25 25 50 0.22
      286-317-3 2 40 79 0.52
      286-317-4 3.2 63 126 0.8
      286-317-5 5 99 197 2.2
      286-317-6 13 256 511 7
