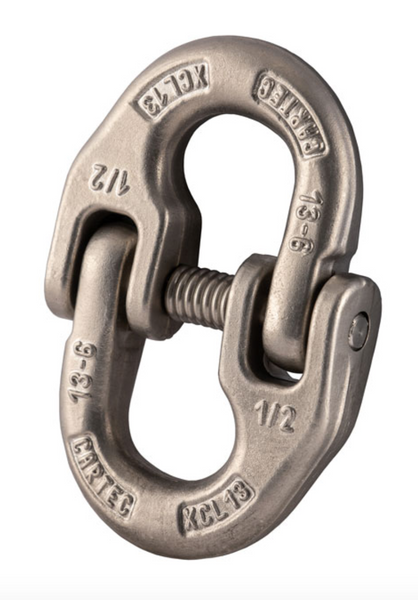

Cartec Grade 6 AISI 316L Component Connector
Cartec SKU: 286-313-1
Cartec Grade 6 AISI 316L Component Connector
Grade 6 Component Connector Material: Grade 6 stainless steel, AISI 316L. Finish: Surface blasted... Read More
Cartec SKU: 286-313-1
Regular price
€101,75
Regular price
RRP
Sale price
TODAY'S PRICE
€101,75
Unit price
per
In stock
Tax included.
This product is NOT available Online.
Please contact us via email for availability and delivery to Europe sales@rigging-eu.com
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk
Description
Description
Grade 6 Component Connector
- Material: Grade 6 stainless steel, AISI 316L.
- Finish: Surface blasted for a uniform, smooth finish.
- Markings: Clearly marked with CE, material grade, manufacturer's ID, size, product ID mark, and traceability code.
- Support: Full CAD support available upon request.
- Certification: Declaration of Conformity (DoC) available.
Spec

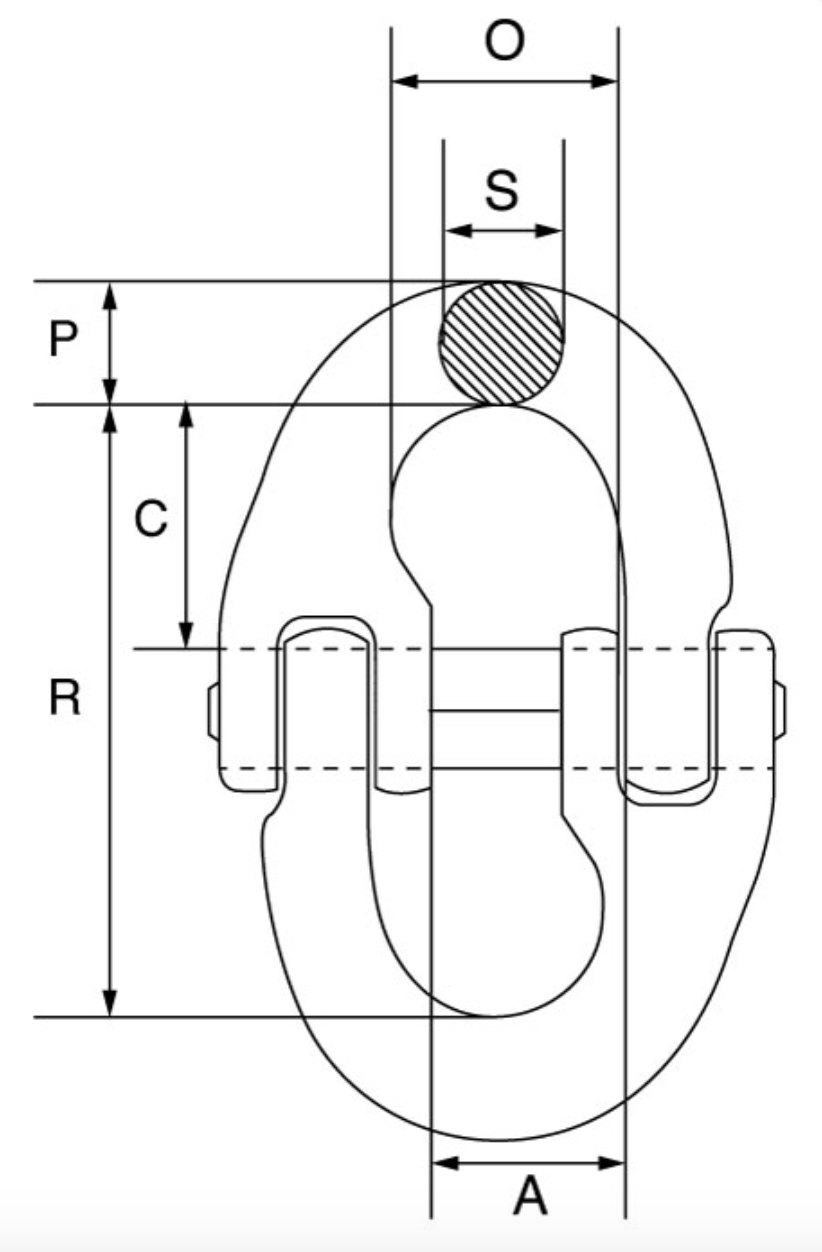

| SKU |
Chain Dia | A | C | O | P | R | S |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | |
| 286-313-1 | 6 | 14 | 18 | 18 | 8 | 45 | 7.5 |
| 286-313-2 |
7 | 18 | 20 | 20.5 | 10.2 | 50.5 | 9 |
| 286-313-3 |
8 | 19 | 25.5 | 23.5 | 11.5 | 62 | 10 |
| 286-313-4 |
10 | 24 | 30 | 27.5 | 12,6 | 72 | 12.6 |
| 286-313-5 |
13 | 28 | 36 | 33.5 | 19 | 87.5 | 16.7 |
| 286-313-6 |
16 | 34.5 | 40.5 | 39.5 | 20.6 | 105 | 20.6 |
| SKU | Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|---|
| mm | t | kN | kN | kgs | |
| 286-313-1 | 6 | 0.9 | 18 | 36 | 0.09 |
| 286-313-2 | 7 | 1.25 | 25 | 50 | 0.12 |
| 286-313-3 | 8 | 1.6 | 32 | 63 | 0.16 |
| 286-313-4 | 10 | 2.5 | 50 | 99 | 0.28 |
| 286-313-5 | 13 | 4.25 | 84 | 167 | 0.64 |
| 286-313-6 | 16 | 6.3 | 124 | 248 | 1.14 |
