Description

Cartec Grade 10 Swivel Eyebolt with Key - 807X
  • Grade 10 alloy steel.
  • Pink painted finish.
  • Minimum breaking load is 4 times the W.L.L.
  • Non standard threading and stem length available.
  • Can be oriented at 360°.
  • Captive screws.
  • On the axial pull there can be variation of +/-5º with a 10% decrease in capacity.
  • Not suitable for rotating under load.
  • Full CAD support available upon request.
  • Certification - Declaration of Conformity
Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

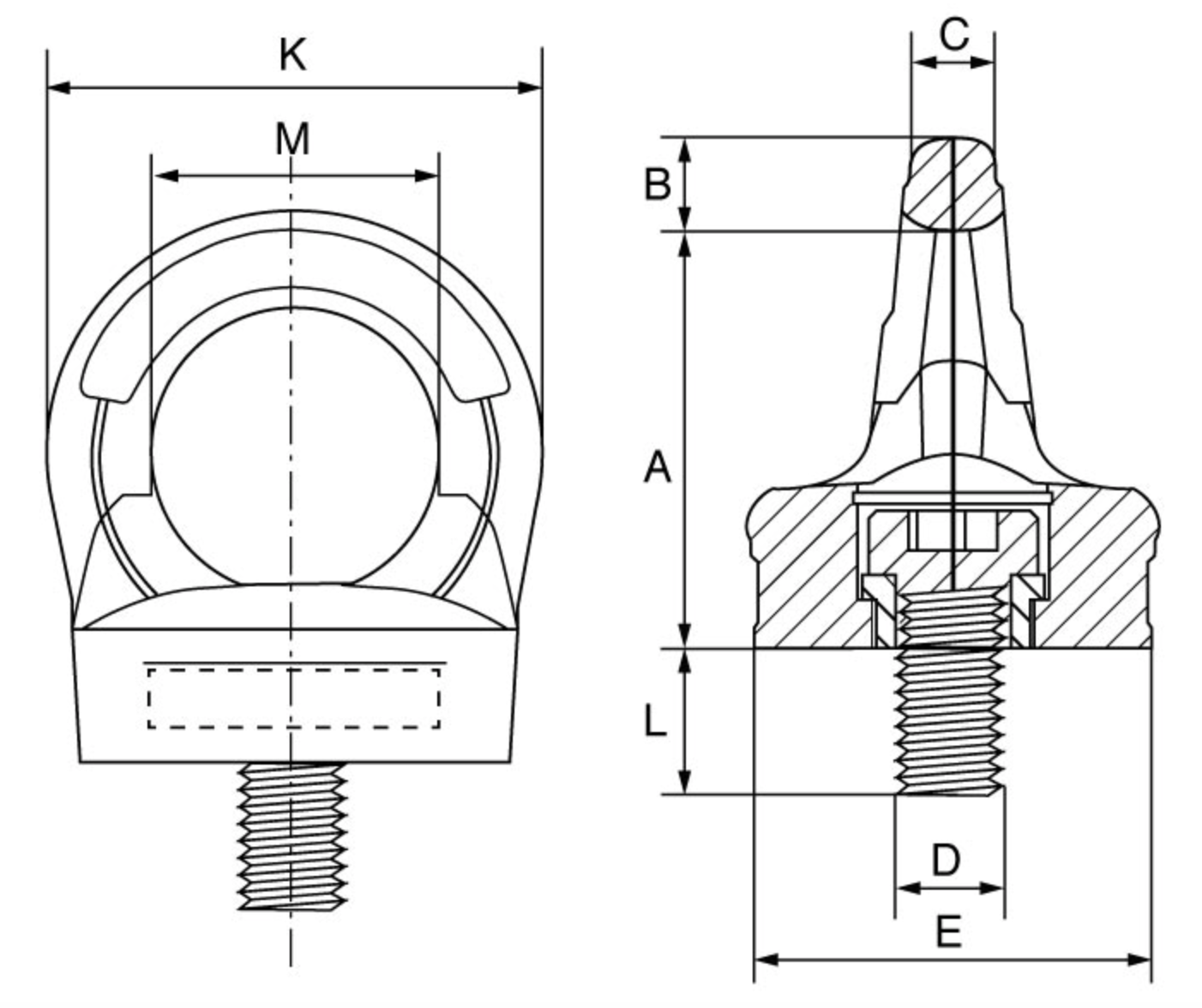

      Spec

      SKU D L W.L.L. A B C M
      mm mm t mm mm mm mm
      286-616-1 M8 12 0.3 44.5 8 10 29
      286-616-2 M10 16 0.4 44.5 8 10 29
      286-616-3 M12 18 0.75 53.5 11 11 34
      286-616-4 M16 24 1.5 56.5 13 14.5 39
      286-616-5 M20 30 2.3 67 14 17 42
      286-616-6 M24 36 3.2 80 18 19 52
      286-616-7 M30 43 4.5 101 22 27 62
      286-616-8 M36 54 7 125 37 38 80
      286-616-9 M42 64 9 148 40 41 90
      286-616-10 M48 72 12 165 45 47 95

      SKU E K Torque Weight
      mm mm Nm kgs
      286-616-1 32 45 8 0.3
      286-616-2 32 45 16 0.3
      286-616-3 44 56 28 0.46
      286-616-4 56 65 70 0.9
      286-616-5 58 70 135 1.15
      286-616-6 73 88 230 2.05
      286-616-7 80 106 465 3.12
      286-616-8 95 154 814 6.7
      286-616-9 105 170 1304 9.5
      286-616-10 120 185 1981 13.55
