Description

Cartec Grade 10 Rotating Eyebolt with Clamp - 806X

Grade 10 Alloy Steel.
Pink painted finish.
Designed, tested & certified in compliance with the technical directives GS-OA15-04 – EN 1677.
Minimum breaking load is 4 times the W.L.L.
Can be oriented at 360°.
The screw is protected with the GEOMET system which guarantees lasting protection in time.
Captive screws.
Eyebolts M36 and above are manufactured to allow use with universal hexagonal keys.
Not suitable for rotation under load.
Full CAD support available upon request.
Certification - Declaration Of Conformity

Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order, depending on the capacity and quantity of order. Please phone or email for confirmed lead-times.

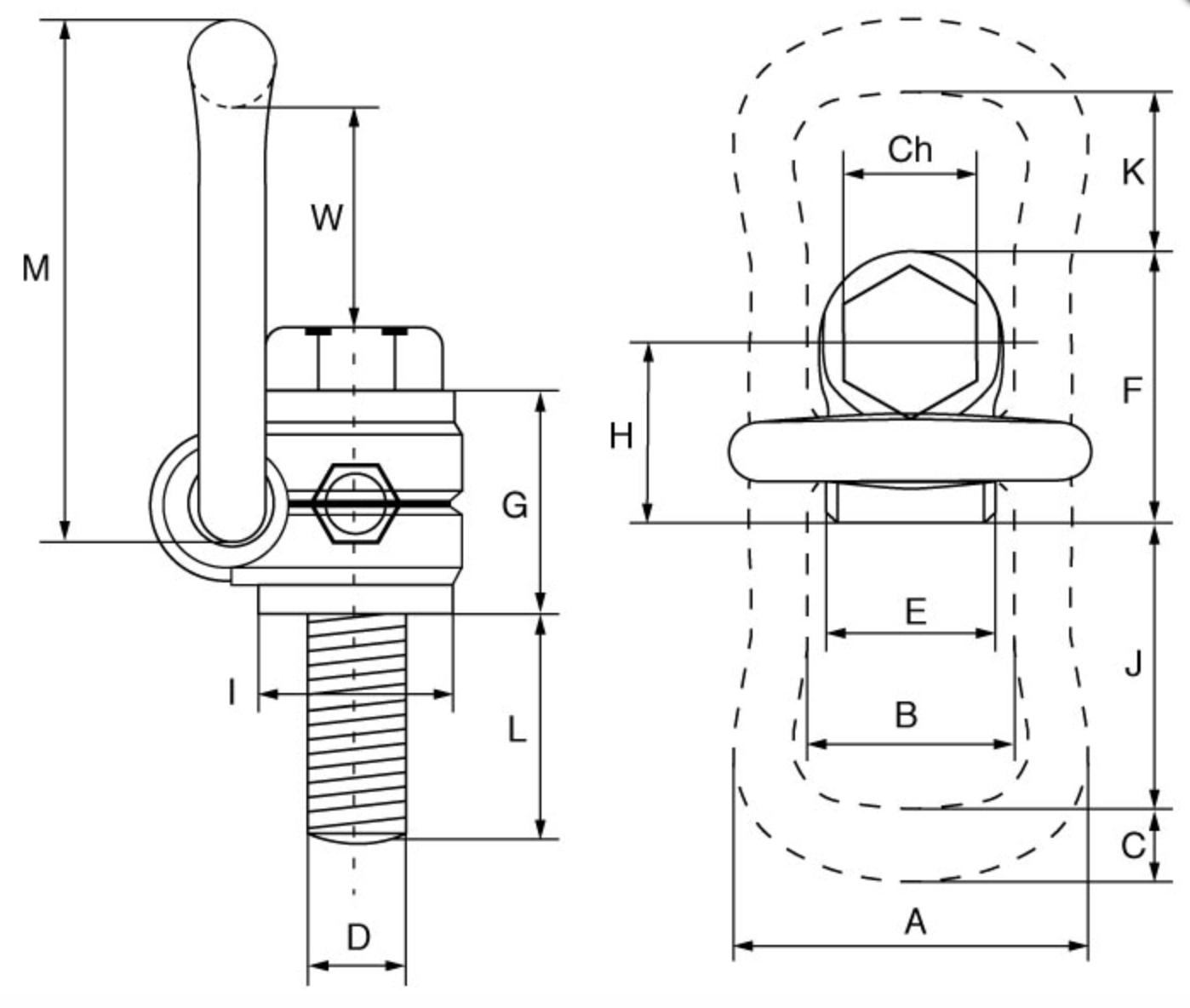

Specification

SKU	D	L	W.L.L.	A	B	C	M	E	F	G
	mm	mm	t	mm	mm	mm	mm	mm	mm	mm
286-612-1	M8	15	0.3	57	34	10	78	24	41	30
286-612-2	M10	15	0.63	57	34	10	78	24	41	30
286-612-3	M12	23	1	66	38	13.5	85	30	50	36
286-612-4	M16	24	1.5	66	38	13.5	85	30	50	36
286-612-5	M20	31	2.5	87	55	16	111	48	68	44
286-612-6	M24	37	4	87	55	16	111	48	68	44
286-612-7	M30	45	5	109	66	22.5	145	54	91	65
286-612-8	M36	50	7	109	66	22.5	145	54	91	55
286-612-9	M36	59	8	109	78	28	190	62	108	81
286-612-10	M42	75	10	136	78	28	190	62	108	75
286-612-11	M42	62	15	169	97	36	242	68	131	89
286-612-12	M48	71	20	169	97	36	242	68	131	89

SKU	H	I	J	K	W	Ch	Torque	Weight
	mm	mm	mm	mm	mm	mm	mm	kgs
286-612-1	26.5	25	51	35	43	13	30	0.275
286-612-2	26.5	25	51	35	42	17	60	0.29
286-612-3	33	32	52	28	40	19	100	0.5
286-612-4	33	32	52	28	38	24	150	0.51
286-612-5	42.5	45	71	36	54	30	250	1.25
286-612-6	42.5	45	71	36	51	36	400	1.3
286-612-7	58.5	60	86	47	62	46	500	3.25
286-612-8	58.5	60	86	43	60	55	700	3.3
286-612-9	72.5	70	115	74	88	55	800	5.9
286-612-10	72.5	70	115	70	86	65	925	6.5
286-612-11	87.5	85	151	97	121	65	1500	11.2
286-612-12	87.5	95	151	93	117	75	2000	11.6
