Cartec Grade 10 Heavy Lift Swivel Hoist - 811X

Grade 10 alloy steel.
Pink painted finish.
Minimum breaking load is 4 times the W.L.L.
Can be oriented at 360°.
Eyebolts M36 and above are manufactured to allow use with universal hexagonal keys.
Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
Not suitable for rotating under load.
Full CAD support available upon request.
Certification - Declaration of Conformity

Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

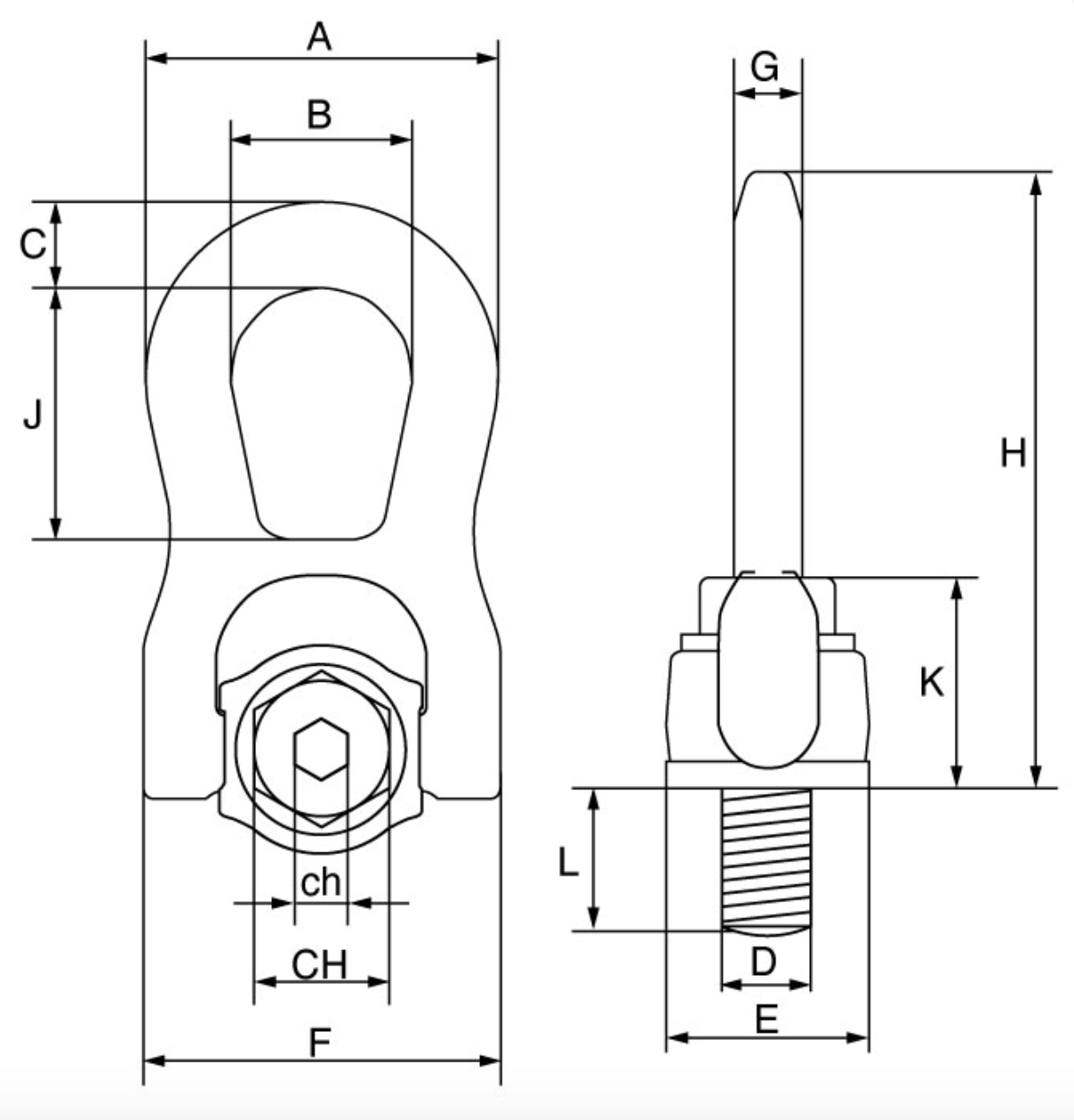

SKU	D	L	W.L.L.	A	B	C	E	F	G
	mm	mm	t	mm	mm	mm	mm	mm	mm
286-613-1	M8	12	0.3	56	28	14	30	55	11
286-613-2	M10	15	0.6	56	28	14	30	55	11
286-613-3	M12	18	1	56	28	14	30	55	11
286-613-4	M14	21	1.3	74.5	38	18	47	78	17
286-613-5	M16	25	1.6	74.5	38	18	47	78	17
286-613-6	M18	27	2	74.5	38	18	47	78	17
286-613-7	M20	30	2.5	74.5	38	18	47	78	17
286-613-8	M22	33	3	106	56	25	62	114.5	22
286-613-9	M24	36	4	106	56	25	62	114.5	22
286-613-10	M27	40	5	106	56	25	62	114.5	22
286-613-11	M30	45	6.3	106	56	25	62	114.5	22

SKU	H	J	K	CH	ch	Torque	Weight
	mm	mm	mm	mm	mm	Nm	kgs
286-613-1	99	40	33.5	13	5	10	0.375
286-613-2	99	40	34.5	17	6	15	0.375
286-613-3	99	40	35.5	19	7	25	0.375
286-613-4	135.5	55	46	22	7	30	1.3
286-613-5	135.5	55	46.5	24	10	60	1.3
286-613-6	135.5	55	47	27	10	100	1.3
286-613-7	135.5	55	48	30	12	120	1.3
286-613-8	198.5	84	63.5	32	12	130	4
286-613-9	198.5	84	64.5	36	14	200	4
286-613-10	198.5	84	66.5	41	14	250	4
286-613-11	198.5	84	68	46	17	350	4
