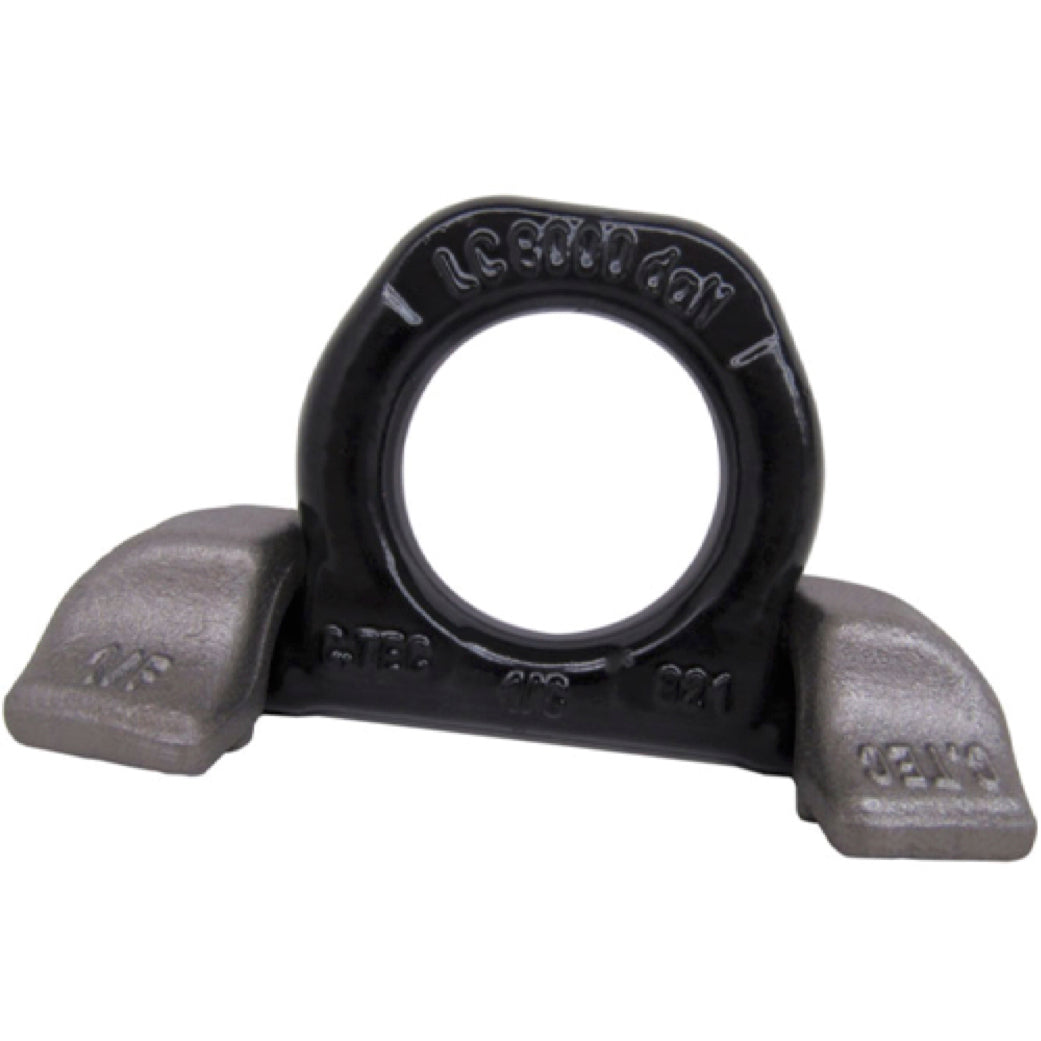

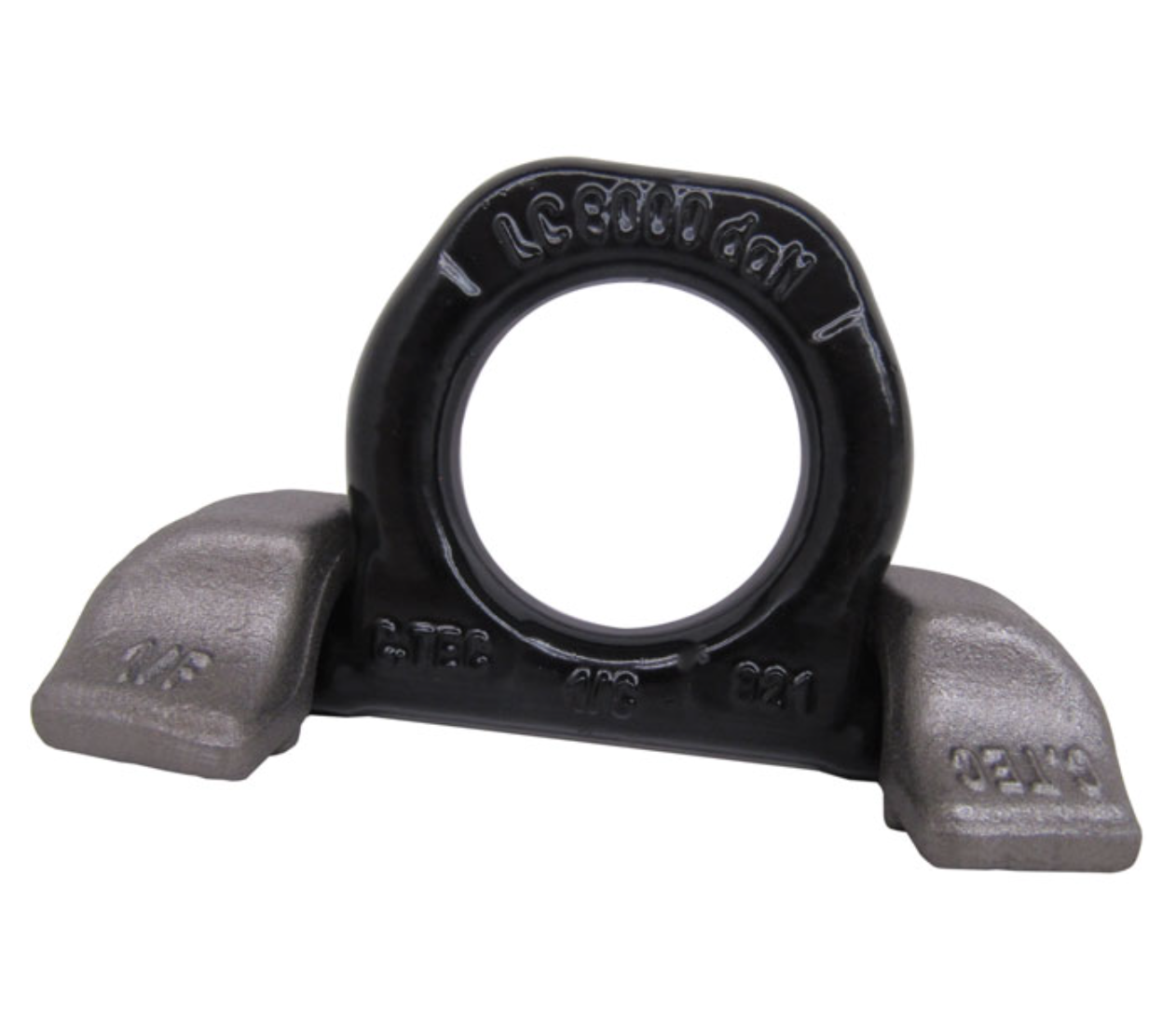

• Grade 10 high resistant alloy steel.
• Black painted finish.
• Minimum breaking load is 2 times the W.L.L.
• The entire perimeter of the base must be welded except for the water discharge area.
• Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.

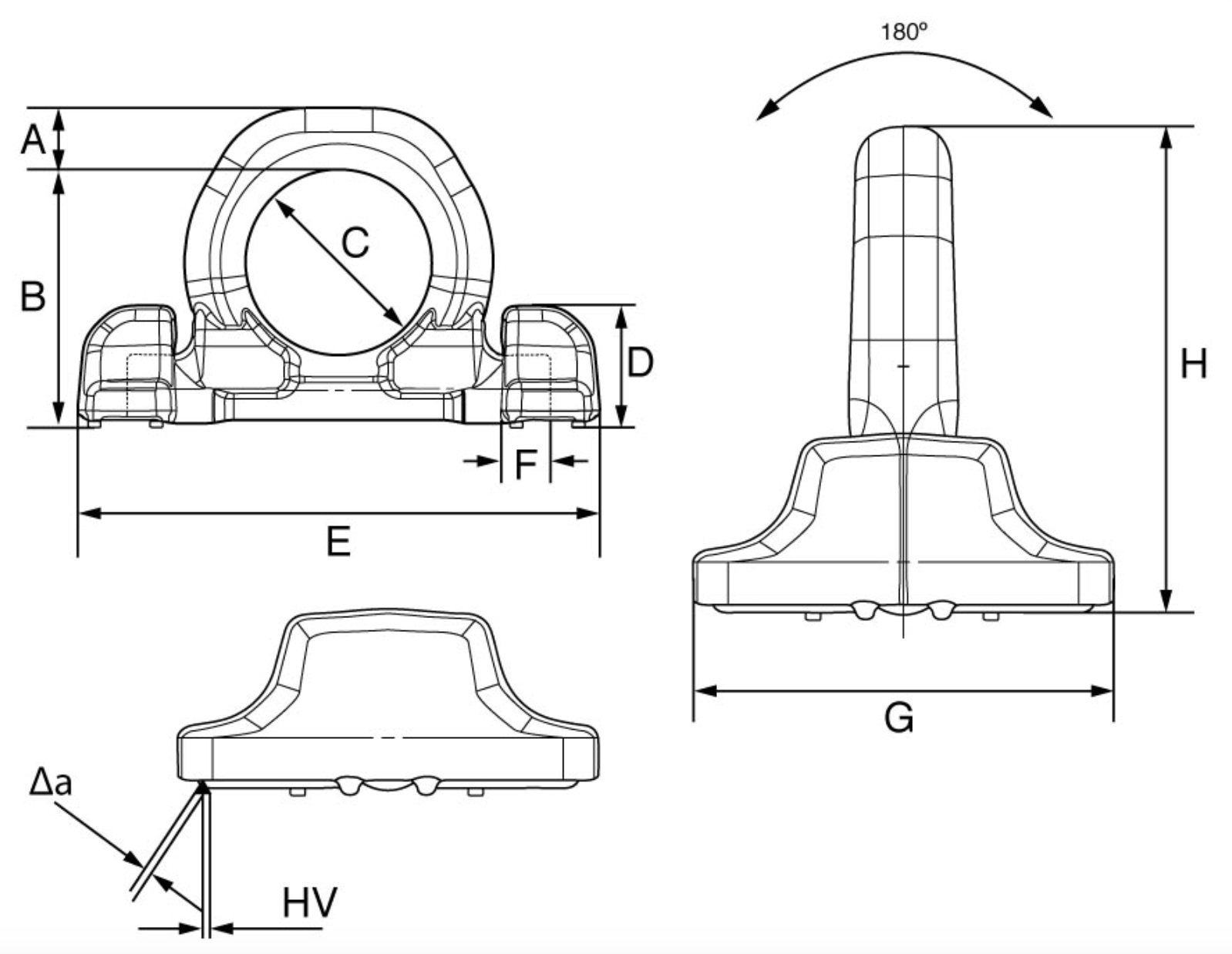

• Full CAD support available upon request.
• Certification - Declaration Of Conformity


In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.

Lc = capacity needed per single bracket.

C = load to anchor.

δ = pulling inclination angle

Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.
