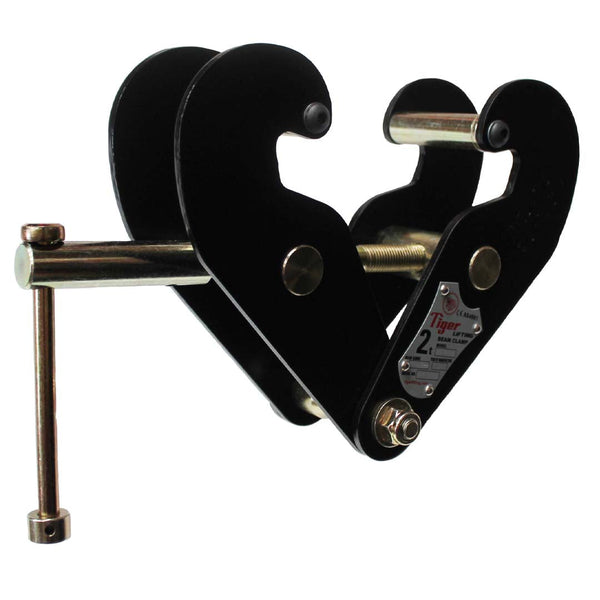

TIGER BEAM CLAMP TYPE BC WITH SUSPENSION BAR

• Range from 1.0t to 10.0t
• Multidirectional adjusting screw spindle ensures a high clamping force to the various flange sizes within its capacity
• 5:1 Safety factor

• Quick and versatile rigging point for hoisting equipment
• Can also be used to hang sport and leisure items (internally), for example punch bags, trapeze frames, hammocks etc.
• Wide Beam flange adjustment range - Beam width range 75mm to 350mm Details on data sheet)
• 1.0t / 214-5-1 - to suit a beam flange of 75-210mm
• 2.0t / 214-5-2 - to suit a beam flange of 75-210mm
• 3.0t / 214-5-3 - to suit a beam flange of 75-305mm
• 5.0t / 214-5-4 - to suit a beam flange of 75-305mm
• 10.0t / 214-5-5 - to suit a beam flange of 120-350mm
• Optional locking device

• Low headroom because of the built in anchor point
• Operating temperature of -50° to +50°

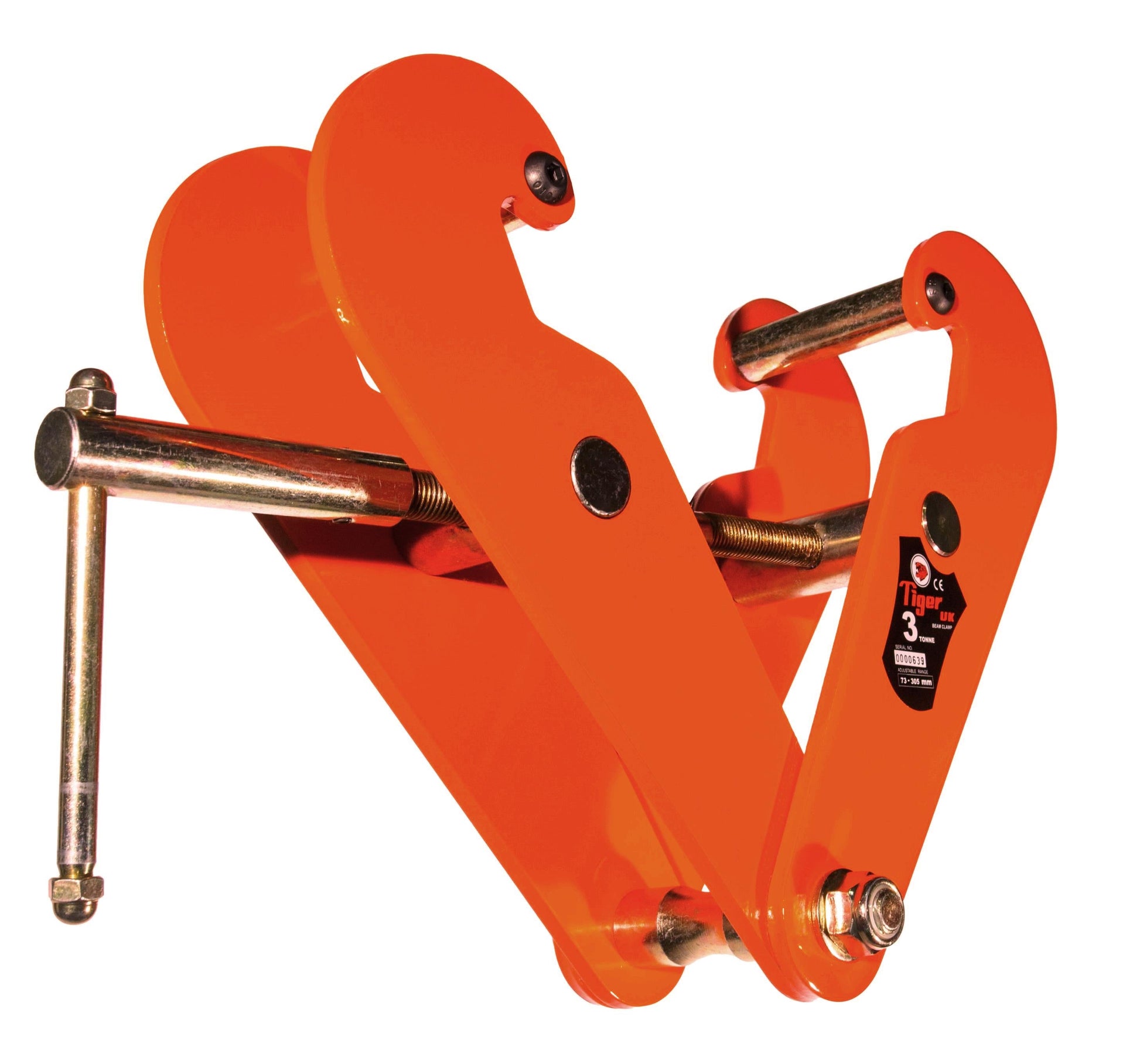

• Please note the colour of the stock is changing from Orange to Black.

These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991.

Certification: Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
