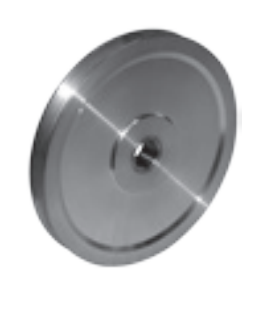

Aluminium Pulley Sheaves (Model No. 171)

Aluminium Pulley / Sheaves (Model 171) Description: Aluminium pulleys with a turned groove and self-lubricating bushing, designed for reliable and efficient performance. Specifications: Pulley Capacity: 100 kg to 700 kg Pulley Diameter:... Read More

ORPTECH SKU: 182-171-65

€81,30

RRP TODAY'S PRICE €81,30

In stock (2)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

Aluminium Pulley / Sheaves (Model 171)

Description: Aluminium pulleys with a turned groove and self-lubricating bushing, designed for reliable and efficient performance.

Specifications:

Pulley Capacity: 100 kg to 700 kg
Pulley Diameter: 65 mm to 150 mm
Material: Aluminium with self-lubricating bushing

Lead Time (if not in stock):

Approximately 3 to 4 weeks from order date

Note: For a formal quotation, please email sales@rigginguk.co.uk

These pulleys are ideal for applications requiring lightweight yet durable components, offering a range of capacities and diameters to suit various needs.

Spec

SKU		182-171-65	182-171-75	182-171-90	182-171-115	182-171-126	182-171-150
Sheave External Ø	mm	65	75	90	115	125	150
Groove Base Ø	mm	56	65	75	100	110	130
Groove Radius	mm	1.3	2.8	2.8	3.5	3.5	4.3
Groove Depth	mm	4.5	5	7.5	7.5	7.5	10
Rim Width	mm	6.5	11	11	12	12	15.8
Bore for Bolt	mm	10	10	10	16	16	18
Hub Length	mm	8	12	12	14	14	16
Hub Ø	mm	30	35	40	45	45	50
Rope Ø Max.	mm	2.5	5	5	6	6	8
Load Capacity (in kg).	kg	100	360	360	630	630	700
Weight (in kg) approx.	kg	0.06	0.12	0.16	0.28	0.34	0.57
