7x7 Construction Pre-Reeled Galvanised Wire Rope Cable Drum *SOLD BY THE DRUM*
7x7 WSC
This versatile wire rope, featuring a steel wire strand core, provides moderate flexibility in smaller cord diameters and is commonly available in sizes from 1mm to 8mm. Ideal for general-purpose applications, it is well-suited for guy wires, guard rails, lanyards, and suspension cables.
Available on 30m, 50m, or 100m wooden reels, with cable diameters ranging from 1mm to 6mm for a variety of uses.

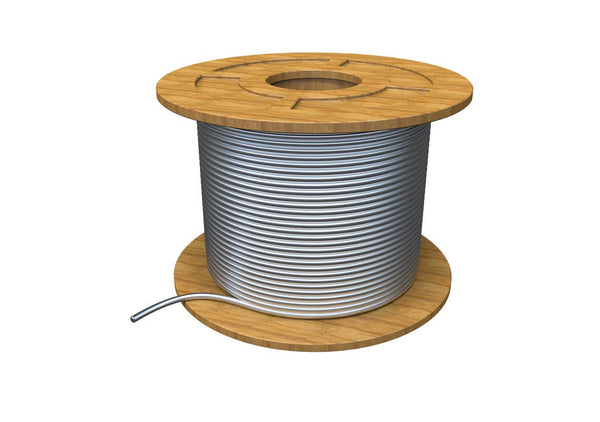

Supplied on a Wooden Reel
| Diameter | 1770 Grade Minimum Breaking Load |
1960 Grade Minimum Breaking Load |
Approx Weight (kg/100 metres) |
| 1.0mm | 70kg | 78kg | 0.48 |
| 1.2mm | 101kg | 112kg | 0.55 |
| 1.5mm | 158kg | 174kg | 0.86 |
| 2.0mm | 280kg | 310kg | 1.52 |
| 2.5mm | 438kg | 485kg | 2.38 |
| 3.0mm | 630kg | 698kg | 3.43 |
| 4.0mm | 1120kg | 1240kg | 6.10 |
| 5.0mm | 1750kg | 1938kg | 9.53 |
| 6.0mm | 2520kg | 2791kg | 13.70 |
