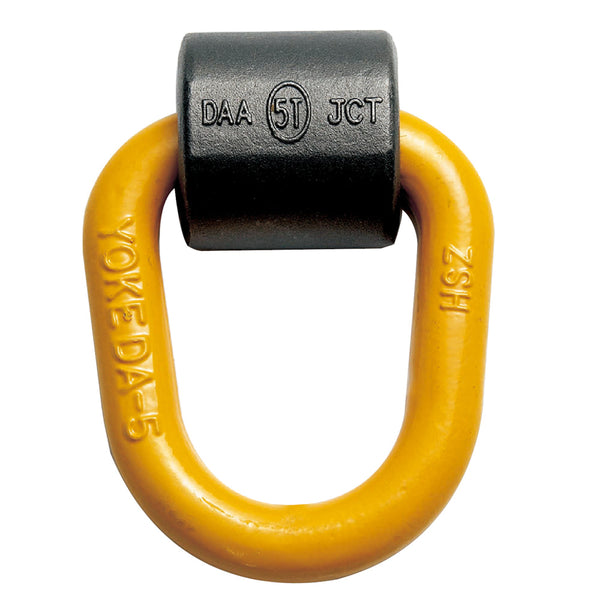

YOKE Weld-On Lifting Point

YOKE SKU: 276-7-1

1 3

YOKE Weld-On Lifting Point

YOKE Weld-On Lifting Point with Spring Pivots through 180° Manufactured from forged alloy steel, quenched and tempered Manufactured and tested in accordance with EN1677-1 Load rated parts are 100% magnaflux... Read More

YOKE SKU: 276-7-1

€18,82

RRP TODAY'S PRICE €18,82

In stock (15)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to Europe sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

YOKE Weld-On Lifting Point with Spring

Pivots through 180°
Manufactured from forged alloy steel, quenched and tempered
Manufactured and tested in accordance with EN1677-1
Load rated parts are 100% magnaflux crack detected
Individual forged parts are traceable to Test Certification
Proof tested to 2.5 times the WLL
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
WLL forged onto each product for quick and easy identification
Lugs designed to assist the welding process
A protected spring keeps the load ring in a required position. The parts are connected in such a way that they remain captive. The spring also reduces noise caused by vibrations
Only apply load in the same direction as the pivot direction

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
