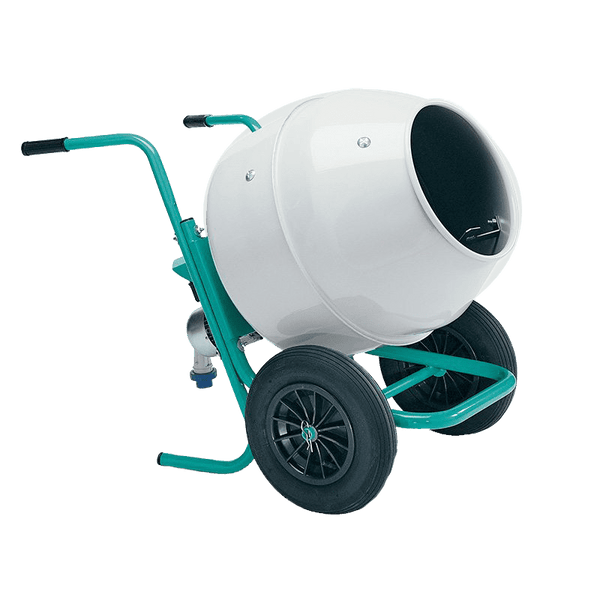

IMER Rollbeta 130L Concrete Mixer 240v - Steel or Poly Drum

• Single-phase 240V/50Hz electric motor
• Gearmotor with steel and technopolymer gears
• Available in the versions with steel drum and poly drum (HDPE)
• Electric safety: built to EN 60204-1 double insulation norms, protected against spraying water (IP 55) and against overload and inadvertent starting again after a power failure.
• Packing: cardboard

Spec

Drum Capacity: 138L

Batch Output: ~100L

Drum Diameter: 610mm

Wheel Dimensions: 370x60mm

Electric Power Supply: 240V/50Hz Sph

Electric Motor Power Rate: 0.3kW

Running Current: 240V 6A

SPL in operator's position: 63 dB(A)

Machine Weight: 46kg

Machine dim. (w/l/h): 660/1170/920mm

Optional Accessorry: Rotating Pivoting Support

Downloads
