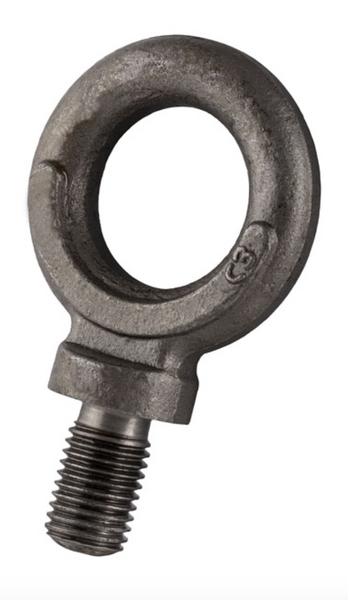

High Tensile Dynamo Eyebolt Whitworth Thread

GT SKU: 286-623-7

1 3

High Tensile Dynamo Eyebolt Whitworth Thread Drop forged, high tensile steel, heat treated. Self colour and electro galvanised finish. Minimum breaking load is 5 times the W.L.L. Marked with CE, W.L.L, size and product ID mark. To be used for vertical lifting only. Certification available Please note the Whitworth Thre Read More

€17,05

RRP TODAY'S PRICE €17,05

In stock (5)

Tax included.

Product variants

This product is NOT available Online.

Please contact us via email for availability and delivery to EU sales@rigging-eu.com

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigging-eu.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigging-eu.co.uk

Description

High Tensile Dynamo Eyebolt Whitworth Thread

Drop forged, high tensile steel, heat treated.
Self colour and electro galvanised finish.
Minimum breaking load is 5 times the W.L.L.
Marked with CE, W.L.L, size and product ID mark.
To be used for vertical lifting only.
Certification available

Please note the Whitworth Thread Eyebolt are manufactured to order and if not in stock lead-the time will be a few days (dependent on quantity). This will be confirmed at point of ordering by our sales team.

Specification

SKU	W.L.L.	A	B	C	D	E	G	H	Weight
	t	mm	mm	mm	mm	mm	mm	mm	kgs
286-623-1	0.1	1/4	22	10	26	19	19	6	0.08
286-623-2	0.15	5/16	22	10	26	19	19	6	0.09
286-623-3	0.25	3/8	22	10	26	19	19	6	0.09
286-623-4	0.5	1/2	29	10.3	35	26	25	8	0.14
286-623-5	0.8	5/8	32	13	41	30	29	9.5	0.24
286-623-6	1.2	3/4	41	16	54	33	35	11.1	0.43
286-623-7	2.2	1	52	20.4	62	46	41	12.7	0.88
